BRIO WT50 WARDROBE ROLL 50 TRIO BOTTOM ROLLER TRACK

BRIO WARDROBE ROLL 50 TRIO BOTTOM ROLLER DOOR TRACK

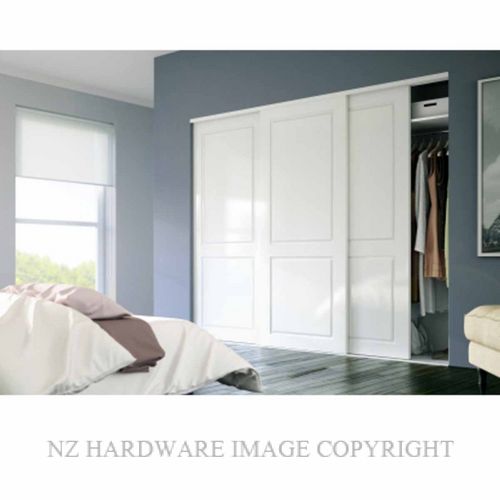

Suitable for interior sliding timber panels for wardrobes, built-in furniture and other applications where a quiet, smooth action is required.
The triple run system for bi-passing panels uses clear anodised or powder coated white aluminium and bottom rollers. Vertical adjustment possible when panels are in situ.
Clean line profiles on the triple head guide and sill provide a discreet framing system which also works with an optional soft close. Soft closes ensure panels

Available Finishes - Clear Anodised - Powdercoat White

MAX PANEL WIDTH920mm
MAX PANEL WEIGHT50kg
PANEL THICKNESS 30mm - 40mm
ITEM NUMBERINCLUDED IN KITSET
BIWT50 18 3Kit suitable for three doors, comprising: 1.8m sill extrusion, 1.8m head extrusion, 1.8m sill cover extrusions,sill cover clips, six door rollers, six guides, all screws and installation instructions.
BIWT50 21 3Kit suitable for three doors, comprising: 2.1m sill extrusion, 2.1m head extrusion, 2.1m sill cover extrusions,sill cover clips, six door rollers, six guides, all screws and installation instructions.
BIWT50 24 3Kit suitable for three doors, comprising: 2.4m sill extrusion, 2.4m head extrusion, 2.4m sill cover extrusions,sill cover clips, six door rollers, six guides, all screws and installation instructions.
BIWT50 27 3Kit suitable for three doors, comprising: 2.7m sill extrusion, 2.7m head extrusion, 2.7m sill cover extrusions,sill cover clips, six door rollers, six guides, all screws and installation instructions.
BIWT50 30 4Kit suitable for four doors, comprising: 3m sill extrusion, 3m head extrusion, 3m sill cover extrusions,sill cover clips, eight door rollers, eight guides, all screws and installation instructions.
Code Supplier Part Number Image Product Name Unit Application Function Finish Width Door Thickness Door Panel Width Price Quantity
BIWT50 18 3CA SFHWT50-18/3CA BRIO BIWT50 18 3CA WARDROBE ROLL TRIO 50 3 DOOR KIT 1.8M ANODISED
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    Clear Anodised
  • Width:
    1800mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors Clear Anodised 1800mm Opening 30mm-40mm 920mm
$253.19 (exc GST)
BIWT50 18 3PWT SFHWT50-18/3PWT BRIO BIWT50 18 3PWT WARDROBE ROLL TRIO 50 3 DOOR KIT 1.8M WHITE
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    White Powdercoat
  • Width:
    1800mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors White Powdercoat 1800mm Opening 30mm-40mm 920mm
$253.19 (exc GST)
BIWT50 21 3CA SFHWT50-21/3CA BRIO BIWT50 21 3CA WARDROBE ROLL TRIO 50 3 DOOR KIT 2.1M ANODISED
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    Clear Anodised
  • Width:
    2100mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors Clear Anodised 2100mm Opening 30mm-40mm 920mm
$270.27 (exc GST)
BIWT50 21 3PWT SFHWT50-21/3PWT BRIO BIWT50 21 3PWT WARDROBE ROLL TRIO 50 3 DOOR KIT 2.1M WHITE
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    White Powdercoat
  • Width:
    2100mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors White Powdercoat 2100mm Opening 30mm-40mm 920mm
$270.27 (exc GST)
BIWT50 24 3CA SFHWT50-24/3CA BRIO BIWT50 24 3CA WARDROBE ROLL TRIO 50 3 DOOR KIT 2.4M ANODISED
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    Clear Anodised
  • Width:
    2400mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors Clear Anodised 2400mm Opening 30mm-40mm 920mm
$288.09 (exc GST)
BIWT50 24 3PWT SFHWT50-24/3PWT BRIO BIWT50 24 3PWT WARDROBE ROLL TRIO 50 3 DOOR KIT 2.4M WHITE
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    White Powdercoat
  • Width:
    2400mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors White Powdercoat 2400mm Opening 30mm-40mm 920mm
$288.09 (exc GST)
BIWT50 27 3CA SFHWT50-27/3CA BRIO BIWT50 27 3CA WARDROBE ROLL TRIO 50 3 DOOR KIT 2.7M ANODISED
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    Clear Anodised
  • Width:
    2700mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors Clear Anodised 2700mm Opening 30mm-40mm 920mm
$307.40 (exc GST)
BIWT50 27 3PWT SFHWT50-27/3PWT BRIO BIWT50 27 3PWT WARDROBE ROLL TRIO 50 3 DOOR KIT 2.7M WHITE
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    White Powdercoat
  • Width:
    2700mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors White Powdercoat 2700mm Opening 30mm-40mm 920mm
$307.40 (exc GST)
BIWT50-30-3CA SFHWT50-30/3CA BRIO BIWT50-30/3CA WARDROBE ROLL TRIO 3 DOOR KIT ANODISED 3M
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    Clear Anodised
  • Width:
    3000mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors Clear Anodised 3000mm Opening 30mm-40mm 920mm
$325.22 (exc GST)
BIWT50-30-3PWT SFHWT50-30/3PWT BRIO BIWT50-30/3PWT WARDROBE ROLL TRIO 3 DOOR KIT WHITE 3M
  • Unit:
    Kitset
  • Application:
    Residential Use
  • Function:
    Wardrobe Doors
  • Finish:
    White Powdercoat
  • Width:
    3000mm Opening
  • Door Thickness:
    30mm-40mm
  • Door Panel Width:
    920mm
Kitset Residential Use Wardrobe Doors White Powdercoat 3000mm Opening 30mm-40mm 920mm
$325.22 (exc GST)
