BRIO MULTIFOLD 30 FOLDING DOOR TRACK

Supplied With Timber Fixings

BRIO MULTIFOLD 30 DOOR TRACK

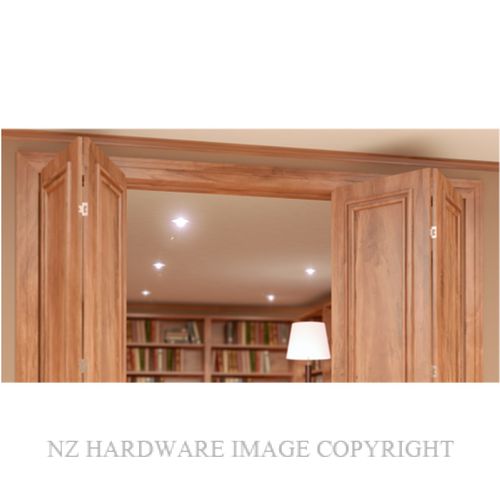

Suitable for residential wardrobes and folding partitions, using equal sized panels. Panels can be either end folding or centre folding.

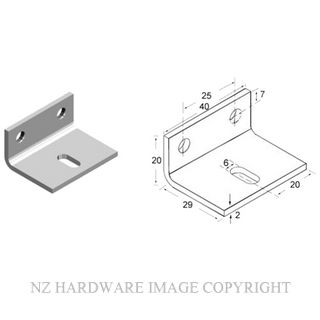

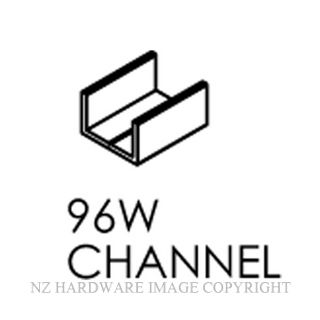

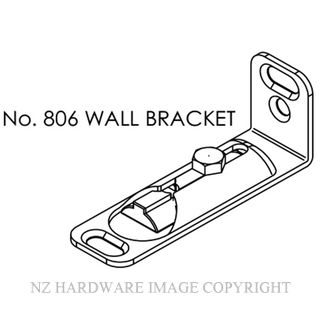

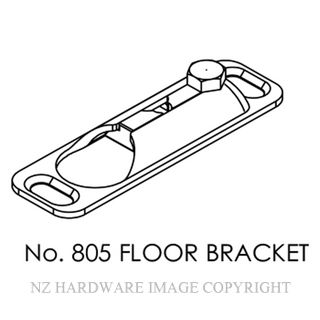

The folding unit is not hinged to a jamb, but is pivoted in the track and on the adjustable jamb bracket. A guide system across the floor must be used on units of three panels or more.

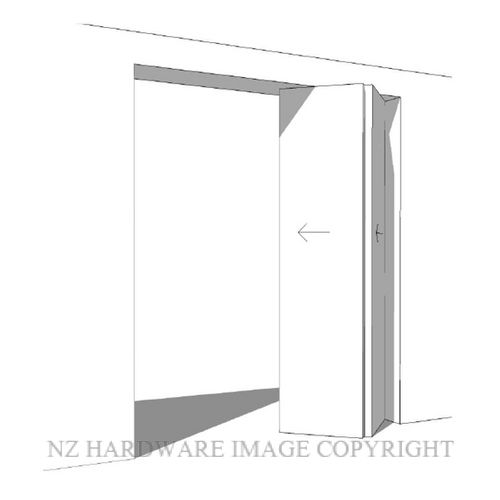

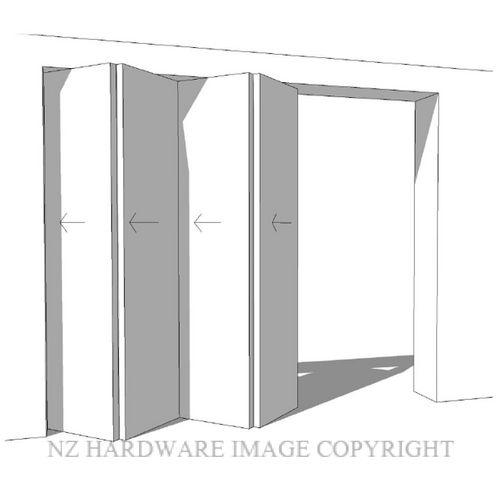

End folding units of two, four or six panels can be pivoted to each side of the opening. Centre folding units of one, three or five full width panels and one “half” width panel can be pivoted to each side of the opening.
Instructions on panel width calculation is shown overleaf. Panels should be constructed to provide secure fitting for the pivots, hangers, hinges and guides and can be either flush, panelled or of louvre construction.

MAX PANEL WIDTH	650mm
MAXIMUM PANEL HEIGHT	2400mm
MAX PANEL WEIGHT	30kg
MINIMUM PANEL THICKNESS	19mm

PRODUCT DESCRIPTION
ITEM NUMBER	INCLUDED IN KITSET

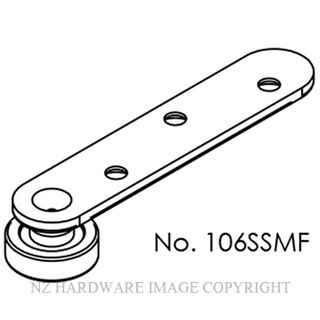

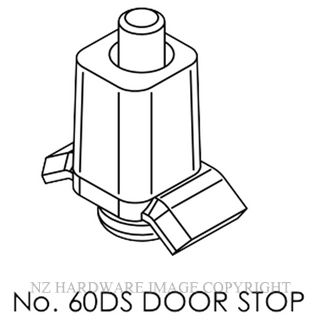

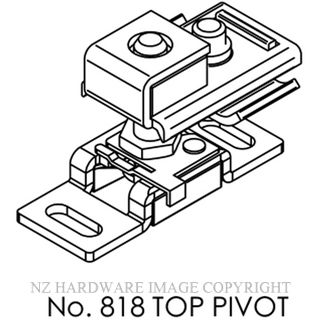

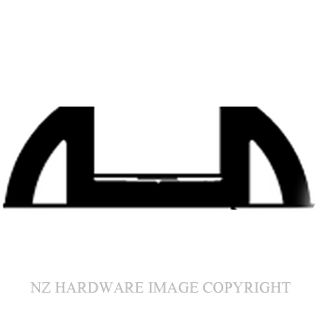

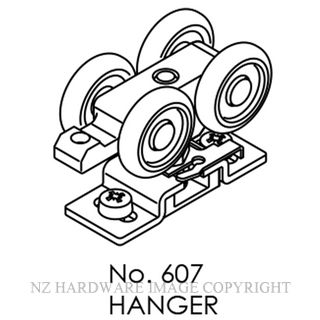

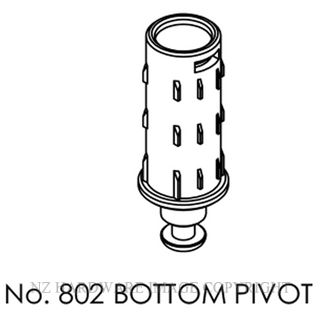

BIMF30 13 2	Kit suitable for two door leaves, pack comprises: 1.3m length of track, one pivot set, one door hanger, one door stop, three flush hinges, one spanner, all screws and installation instructions.

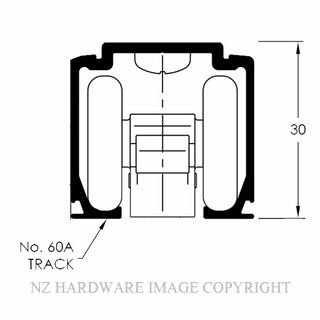

BIMF30 2PK	Fittings pack with all items needed to hang two doors. Pack comprises: one pivot set, one door hanger, one door stop, three flush hinges, one spanner, all screws and installation instructions. NOTE THIS PACK DOES NOT INCLUDE A BI60A TOP TRACK CHOOSE THE LENGTH OF BI60A TOP TRACK YOU REQUIRE FROM RELATED PRODUCTS For a 3500mm opening choose a 4000mm track
BIMF30 4PK	Fittings pack with all items needed to hang four doors (moving in one direction). Pack comprises: one pivot set, two door hangers, one door stop, nine flush hinges, one spanner, all screws and installation instructions. NOTE THIS PACK DOES NOT INCLUDE A BI60A TOP TRACK CHOOSE THE LENGTH OF BI60A TOP TRACK YOU REQUIRE FROM RELATED PRODUCTS For a 3500mm opening choose a 4000mm track

Downloadable Files

Downloads

Code	Supplier Part Number	Name	Unit	Product Options	Width	Price	Quantity
BIMF30 13 2	MF13/2	BRIO MF13 2 MULTIFOLD 30 TRACK KIT 1300MM Unit: Pack Product Options: Folding Doors Width: 1300mm Opening	Pack	Folding Doors	1300mm Opening	$116.13 (exc GST)	Quantity:
BIMF30 2PK	MF2/PACK	BRIO MULTIFOLD 2 DOOR FITTING PACK MULTIFOLD 30 Unit: Pack Product Options: Folding Doors Width: -	Pack	Folding Doors	-	$104.35 (exc GST)	Quantity:
BIMF30 4PK	MF4/PACK	BRIO MULTIFOLD 4 DOOR FITTING PACK MULTIFOLD 30 Unit: Pack Product Options: Folding Doors Width: -	Pack	Folding Doors	-	$184.29 (exc GST)	Quantity:
