ECOGLO G3 GUIDANCE STRIP

ECOGLO G3 GUIDANCE STRIP



PRODUCT DESCRIPTION

The G3-001 is designed to ensure visibility of handrails, pathways (including ramps and corridors) and doorways in escape routes to meet NZBC Clause F6 “Visibility in Escape Routes”. The guidance strip will be effective in all light conditions including during failure of the main lighting.


PERFORMANCE
Independently tested in accordance with UL1994 for 10 metre visibility to meet NZBC Clause F6.


Risk Group C Building
30 minutes visibility Minimum charging illuminance of 20 lux continuously during occupancy.

Risk Group B Building
90 minutes visibility Minimum charging illuminance of 60 lux continuously during occupancy.


The guidance strip is suitable for use indoors and outdoors.


UV Resistance‚ Loss of luminance after 1000 hrs ASTM G-155 Cycle 1 exposure: <10%


SUPPLY
The products are available in 1 metre lengths.


COMPOSITION
Ecoglo G3-001 Guidance Strip is manufactured from extruded 6060T5 aluminium section. Custom made photoluminescent
pigments are embedded in thermoset polyester carriers to integrally bond the active ingredients into the aluminium following
curing at high temperature. The photoluminescent area is also recessed into protective channels.


INSTALLATION
Installation is a simple process using polyurethane adhesive, fixers (screws) or pre-fitted release tape.



Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Overall Length Width Mounting Returns Policy Privacy Policy Price Quantity

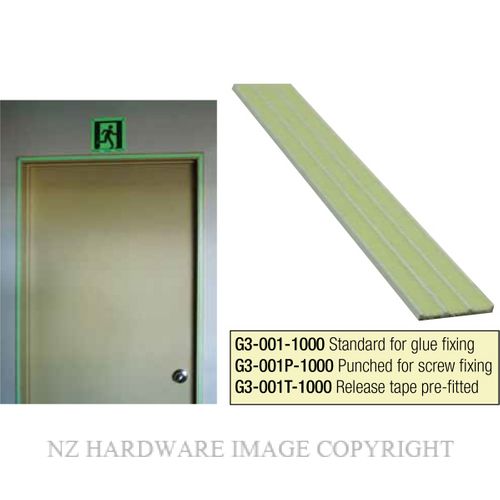

ECG3-001-1000 G3-001-1000 ECOGLO ECG3-001-1000 GUIDANCE STRIP 16MM - 1000MM
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    15.5mm
  • Mounting:
    Glue Fix
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 15.5mm Glue Fix Non Returnable Item Non Returnable Item
$8.32 (exc GST)
ECG3-001P-1000 G3-001P-1000 ECOGLO ECG3-001P-1000 GUIDANCE STRIP 16MM - 1000MM PUNCHED
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    15.5mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 15.5mm Screw Fix Non Returnable Item Non Returnable Item
$14.03 (exc GST)
ECG3-001T-1000 G3-001T-1000 ECOGLO ECG3-001T-1000 GUIDANCE STRIP 16MM - 1000MM WITH FOAM TAPE
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    15.5mm
  • Mounting:
    Self Adhesive
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 15.5mm Self Adhesive Non Returnable Item Non Returnable Item
$12.99 (exc GST)
