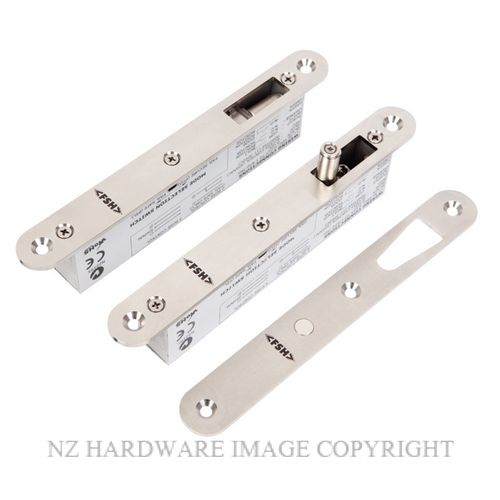

FSHVE1260R VE-LOCK PRE-LOAD DROP BOLT ROUND EDGE

FSHVE1260R VE-LOCK PRE-LOAD DROP BOLT ROUND EDGE
  • FSHVE1260R VE-LOCK PRE-LOAD DROP BOLT ROUND EDGE
  • FSHVE1260R VE-LOCK PRE-LOAD DROP BOLT ROUND EDGE



PRODUCT DESCRIPTIONN

The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt
mechanism to allow to be used on 180° degree swing through doors.
The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA@12VDC.
A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/ TRIMEC ES8000 drop bolt footprint.
An optional LED red/green indicator unit is available.



PRODUCT FEATURES
VOLTAGE Multi Voltage 12-30VDC
Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load.
More side load = more current. See preload vs. current graph.
Sleep-Mode: After locking/unlocking the current drops down to ~0.015A (15mA)
HOLDING FORCE 1000kg
FUNCTION Mortice Mount, power-to-lock/power-to-release field interchangeable,
up to 35kg of Pre-Load capability, unlocking and up to 6.5kg locking
APPROVALS CE
C-Tick
Fire rated in accordance with AS1905.1.2005 Part 1 to up to 4 hours on fire door assemblies
MONITORING Lock Status Sensor of the internal locking mechanism
Door Status Sensor Built-in Reed Switch, monitoring the door position
ENVIRONMENTAL Operational Temperature Range -20° to +60°C
DURABILITY Exceeding Australian Standard AS4145.2-2008
400,000 operating cycles
• Durability D7
STRENGTH Meeting Australian Standard AS4145.2-2008
• Static Strength S8
• Impact Strength S8
MAXIMUM DOOR GAP 8mm
DOOR MISALIGNMENT Standard Strike Plate +- 4mm Special Strike Plate up to +- 12mm


PRODUCT FEATURES

 • Releases with up to 35kg of Pre-Load/Side Load
• Motorised locking device
• Durability tested to 400,000 cycles
• Multi voltage from 12 to 30VDC
• Sleep-Mode Current less than 15mA@12VDC
• Fully monitored including Reed Switch for
door position
• Up to 1000kg Holding Strength
• 5 year warranty
• Retrofit version for Trimec/PADDE ES8000
(VE1260S Square Edge Version)



Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Function Product Features Returns Policy Privacy Policy Price Quantity
FSHVE1260R FSHVE1260R FSHVE1260R VE-LOCK PRE-LOAD DROP BOLT ROUND EDGE
  • Unit:
    Each
  • Function:
    Multi Function PTL-PTO,Power To Lock,Power To Open
  • Product Features:
    12-30Volts Dc Multi Voltage
  • Returns Policy:
    20 Percent Surcharge
 Each Multi Function PTL-PTO,Power To Lock,Power To Open 12-30Volts Dc Multi Voltage 20 Percent Surcharge 20 Percent Surcharge
$1,639.11 (exc GST)
