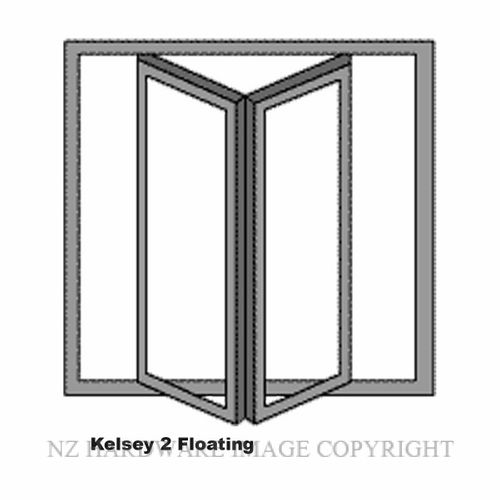

DRAKE & WRIGLEY KELSEY 2 FLOATING

 Fire.pngSupplied With Timber Fixings

DRAKE & WRIGLEY KELSEY FOLDING WINDOW TRACK

2 FLOATING WINDOWS

SPECIFICATIONS

MAXIMUM PANEL WEIGHT 40kg
PRODUCT DESCRIPTION

The Kelsey System is manufactured from brass components and is used for windows. Kelsey bi-folds were introduced in 1938 and are still popular today, proving their design longevity. These types of systems allow unlimited window openings, and a broad range of designs are available to bring the outdoors into interior environments

  • Provides maximum view and ventilation
  • Full weather and draft proof.
  • Easy operation
  • Durable with 50 years proven time record
  • Suitable for commercial, industrial and domestic applications
  • Extrusions, fittings and sets are available for use with timber Joinery
  • Maximum window height 1800mm
  • Maximum window sash width 500mm
  • Maximum sash weight per 40kgs
  • Gives 90% clear opening and full vision access
  • Wind tested (passed rating tests)
  • Telarc approved
  • Space age plastic rollers self lube, no noise
  • Can be used in salt water environments
  • windows need not be hinged at the jamb. They can float freely to either side of the opening
  • Drainage is self draining
  • Guaranteed
  • Enhances resale value of property
  • Manufactured of - Brass
COMPONENTS REQUIRED
ITEM NOQUANTITY
DW4520L TOP ROLLER1
DW4520R TOP ROLLER1
DW4518L BOTTOM GUIDE1

DW4518R BOTTOM GUIDE

1

DW4508 HINGE HANDLE

 1
DW4506 LOOSE PIN HINGES1
DW4515LH PIVOT COVER1
DW4515RH PIVOT COVER1
DW4106 SPRING CATCH1
BOTTOM GUIDE TRACK1
Code Supplier Part Number Image Product Name Unit Price Quantity
DWKELSEY 2FL DRAKE & WRIGLEY KELSEY 2 FLOATING
  • Unit:
    Set
Set
$0.00 (exc GST)
