DRAKE & WRIGLEY KELSEY 4 FLOATING 1 FIXED RIGHT HAND

DRAKE & WRIGLEY KELSEY 4 FLOATING 1 FIXED RIGHT HAND
 Fire.pngSupplied With Timber Fixings

DRAKE & WRIGLEY KELSEY FOLDING WINDOW TRACK

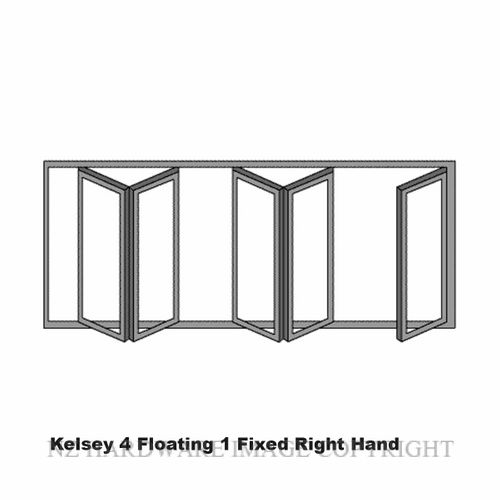

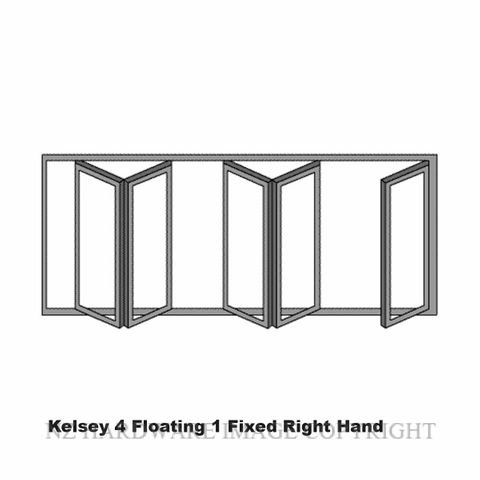

4 FLOATING 1 FIXED RIGHT HAND WINDOWS

SPECIFICATIONS

MAXIMUM PANEL WEIGHT 40kg
PRODUCT DESCRIPTION

The Kelsey System is manufactured from brass components and is used for windows. Kelsey bi-folds were introduced in 1938 and are still popular today, proving their design longevity. These types of systems allow unlimited window openings, and a broad range of designs are available to bring the outdoors into interior environments

  • Provides maximum view and ventilation
  • Full weather and draft proof.
  • Easy operation
  • Durable with 50 years proven time record
  • Suitable for commercial, industrial and domestic applications
  • Extrusions, fittings and sets are available for use with timber Joinery
  • Maximum window height 1800mm
  • Maximum window sash width 500mm
  • Maximum sash weight per 40kgs
  • Gives 90% clear opening and full vision access
  • Wind tested (passed rating tests)
  • Telarc approved
  • Space age plastic rollers self lube, no noise
  • Can be used in salt water environments
  • windows need not be hinged at the jamb. They can float freely to either side of the opening
  • Drainage is self draining
  • Guaranteed
  • Enhances resale value of property
  • Manufactured of - Brass

FOR RELATED PRODUCTS REFER BELOW

COMPONENTS REQUIRED
ITEM NOQUANTITY
DW4520L TOP ROLLER2
DW4520R TOP ROLLER2
DW4518L BOTTOM GUIDE2

DW4518R BOTTOM GUIDE

2

DW4508 HINGE HANDLE

 2
DW4506 LOOSE PIN HINGES2
DW4506 FIXED PIN HINGES2
DW4515LH PIVOT COVER2
DW4515RH PIVOT COVER2
DW4106 SPRING CATCH2
DW4103 TELESCOPIC STAY1
DW133 SPLIT RAIL FASTENER1
BOTTOM GUIDE TRACK1
Code Supplier Part Number Image Name Unit Price Quantity
DWKELSEY 4FL1FRH DRAKE & WRIGLEY KELSEY 4 FLOATING 1 FIXED RIGHT HAND
  • Unit:
    Set
Set
$0.00 (exc GST)
Unavailable for Online Purchase, Contact Us
