IVES COR9G SCP DOOR COORDINATOR SATIN CHROME

 Fire.pngSupplied With Fixings

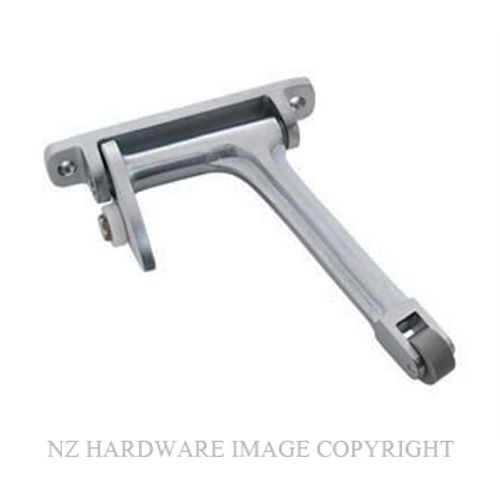

IVES COR9G DOOR CO-ORDINATOR

PRODUCT DESCRIPTION

The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other. The coordinator can be used in conjunction with LCN and Briton door closers. Ives coordinator's are designed for commercial projects and are suited to high traffic areas.
PRODUCT FEATURES
  • Non-handed
  • Gravity action arm and door bracket are field adjustable for accurate installation
  • Rubber roller provides quiet and efficient operation and helps protect the astragal and doors from damage
  • Made of forged brass
OPERATION OF GRAVITY COORDINATOR - REFER DIAGRAM

When active door is open, coordinator prevents active door from closing until inactive door bypasses. Closing of inactive door causes strike plate on top of door to contact cam and lift the arm, allowing active door to close. As active door continues closing, roller rides over strike plate on to door bracket, holding arm above active door.

SPECIFICATIONS
DOOR OPENING WIDTHSOVER 1200MM
MATERIALFORGED BRASS
FINISHSATIN CHROME
Code Supplier Part Number Image Product Name Unit Finish Door Panel Width Price Quantity
IVES COR9G GJH22055 IVES COR9G SCP DOOR COORDINATOR SATIN CHROME
  • Unit:
    Each
  • Finish:
    Satin Chrome
  • Door Panel Width:
    1200mm
Each Satin Chrome 1200mm
$269.83 (exc GST)
