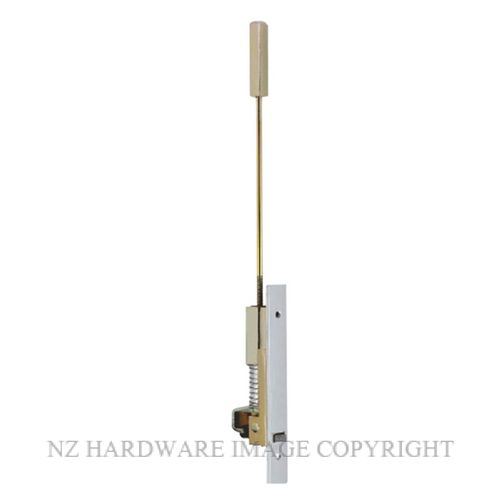

IVES FB31T AUTO FLUSH BOLT MF FIX SATIN CHROME

Fixings.pngSupplied With Timber Fixings
 warranty-1.png10 Year Warranty

IVES FB31B AUTO FLUSH BOLT (TOP BOLT)

SPECIFICATIONS

DOOR TYPEAluminium and hollow metal
OPERATIONInactive door is latched when active door closes, bolts retract when active door is opened
LOW ACTUATION FORCESTop bolt has no spring tension
BOLTS19mm throw with a 22mm vertical adjustment
STANDARD RODLength is 300mm, measured from the centre of the flush bolt body to the bolt tip
EXTENSION RODA 457mm extension rod is available for high doors
DIMENSIONSBody size; 25mm W x 172mm L x 52mm D
HANDINGNon-handed
FINISHSatin stainless steel
OPTIONALDust proof strike DP2 prevents dirt build-up assuring full engagement of bolt
PRODUCT DESCRIPTION
Ives flush bolts have been designed with manual and automatic functions for timber and metal doors. The series includes a comprehensive range of models to cover most installation requirements. Selected for rigidity and strength, flush bolts are suited to meet commercial demands.
PRODUCT FEATURES
  • Manufactured from heavy duty steel plate and cast brass
  • Steel components are dichromate plated for corrosion resistance
  • 19mm bolt throw for positive locking
  • Fully automatic retraction of auto bolt
  • Low actuation forces in auto locking functions
  • Top auto flush bolts supplied with strike plate
  • The 10 year warranty provides specifiers and users with assured quality and performance

FOR RELATED PRODUCTS REFER BELOW

CLICK TO VIEW ALL SATIN CHROME & SILVER PRODUCTS

Code Supplier Part Number Image Product Name Unit Function Finish Overall Length Width Price Quantity
IVES FB31T SC GJH22034 IVES FB31T AUTO FLUSH BOLT MF FIX SATIN CHROME
  • Unit:
    Each
  • Function:
    Flush Bolts Auto Locking
  • Finish:
    Satin Chrome
  • Overall Length:
    172mm
  • Width:
    25mm
Each Flush Bolts Auto Locking Satin Chrome 172mm 25mm
$268.93 (exc GST)
