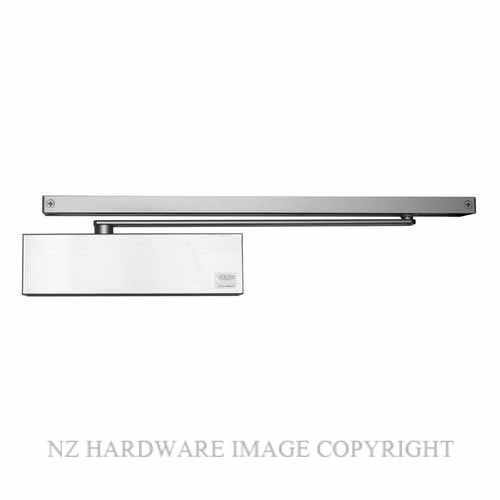

LOCKWOOD DC7714SRDA DA SLIDER RAIL DOOR CLOSER SATIN STAINLESS

LOCKWOOD DC7714SRDA DA SLIDER RAIL DOOR CLOSER SATIN STAINLESS

 LOCKWOOD DC7714SRDASSS DELAY ACTION SLIDE RAIL DOOR CLOSERS
(SATIN STAINLESS)

Lockwood Door Closers are non-handed, therefore final assemblies are suitable for clockwise or anticlockwise opening doors.
Back Check
Back check cushions or slows the opening movement of the door prior to reaching the final open position.
Back check intensity is adjustable to allow for door size,door weight and closing power. It is mandatory on all fire doors.
Delayed Action
The delayed action is an independent valve and can either be adjusted as part of the closing sequence or independently adjusted for delayed action.
Such doors are particularly suitable for use by the disabled,the aged and people with prams or trolleys.
Fire Test
Approved on fire door assemblies up to 4 hours,in accordance with Australian Standards AS1905 Part 1 – Fire Resistant Doors 2005.

If you require assistance with your selection please contact us either by email or phone.

Fire.pngSupplied With Fixings
Function.pngSlide Rail Door Closer
Function.pngDoor Closer Adjustable Hold Open. Adjustable Hold-open can be set at any angle up to 130° of opening.  Hold open function can not be used when closer is used on a fire door.
Delay Action.pngDelay Action Closer The delayed action function means that the door does not immediately close once released. This gives a short space of time for persons, or trolleys to go through the door.

Delay Action - Standard
Back Check - Standard
Door Closer Strength - 1 to 4 Adjustable Strength

Fire.pngFire Rated Check with your door supplier if these closers are approved for your doors

Finish - Satin Stainless
Available Finishes - Silver Grey - Satin Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Product Options Product Features Finish Capacity Strength Fire Rated Returns Policy Privacy Policy Price Quantity
LWDC7714SRDASSS DC7714SRDASSS LOCKWOOD DC7714SRDA DA SLIDER RAIL DOOR CLOSER SATIN STAINLESS
  • Unit:
    Each
  • Application:
    Internal Door
  • Function:
    Accessible Toilet Door,Apartment Entry Door,Boardroom Door,Corridor Door,Egress Door,Entry Door,Fire Door,Fire Escape Door,Lift Lobby,Office Door,Toilet Lobby,Warehouse Door,Smoke Control Door
  • Product Options:
    Track Arm
  • Product Features:
    Non Hold Open,Delay Action
  • Finish:
    Stainless (Satin 304)
  • Capacity:
    2 - Medium Usage
  • Strength:
    1 to 4
  • Fire Rated:
    Fire Rated
  • Returns Policy:
    20 Percent Surcharge
 Each Internal Door Accessible Toilet Door,Apartment Entry Door,Boardroom Door,Corridor Door,Egress Door,Entry Door,Fire Door,Fire Escape Door,Lift Lobby,Office Door,Toilet Lobby,Warehouse Door,Smoke Control Door Track Arm Non Hold Open,Delay Action Stainless (Satin 304) 2 - Medium Usage 1 to 4 Fire Rated 20 Percent Surcharge 20 Percent Surcharge
$572.99 (exc GST)
