INTERLOCK P1003 MODEL 350 4B FRICTION HINGES

SUPPLIER CODES - P1003 - 350 4B

A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projected top hung (PTH) sashes. Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.

Features
• A comprehensive range to cater for most applications
• Non-handed
• Manufactured with the unique “pull-in” feature
• No sliding channels
• Factory set friction levels mean no on-site adjustment is required
• Fixed directly through the bearing eyelet as well as through the
formed screw or rivet holes
• New Zealand made
Options
• Available in three sizes, designated by the frame plate length, catering for sashes weighing up to 30kg. The selection of which is determined by the sash weight and height (refer chart below)
• Includes specific function models:
- Non-friction for use with window control mechanisms - Reduced friction

If you require assistance with your selection please contact us either by email or phone.

Fire.pngNo Fixings Supplied
Dimension (A) - 140mm
Dimension (B) - 113.9mm
Dimension (C) - NA
Dimension (D) - 20mm
Dimension (E) - 8.5mm
Dimension (F) - 28.9mm
Dimension (G) - 160mm
Dimension (H) - NA
Dimension (I) -  NA
Dimension (J) - 283.9mm
Dimension (K) - 300mm
Dimension (L) - 348.5mm
Dimension (M) - 8mm
Dimension (N) - 16mm
Dimension (O) - 40mm

Function.pngMaximum Sash Height - 800mm
Maximum Sash Weight - 20KG
Full Friction Stay
Opening Angle - 30 Degree
Made From - Stainless Steel 304 Grade

Finish - Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Code Supplier Part Number Image Name Unit Application Function Product Features Finish Overall Length Height Capacity Returns Policy Privacy Policy Price Quantity

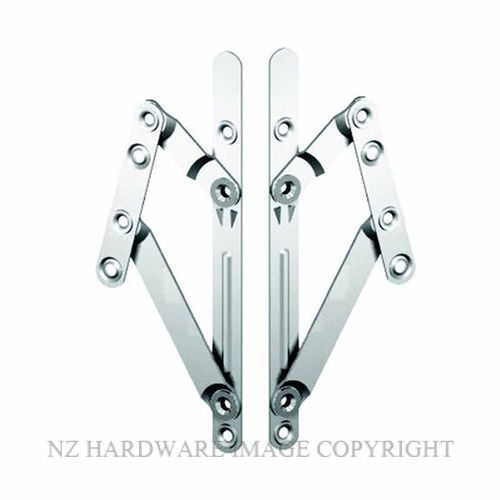

INTP1003 P1003 INTERLOCK P1003 MODEL 350 4B FRICTION HINGES STAINLESS
  • Unit:
    Pair
  • Application:
    Projected Top Hung Sashes (PTH)
  • Function:
    Opening Angle 30 Degree
  • Product Features:
    Full Friction Stay
  • Finish:
    Stainless
  • Overall Length:
    348.5mm
  • Height:
    Max Sash Height 800mm
  • Capacity:
    Max Weight 20KG
  • Returns Policy:
    20 Percent Surcharge
Pair Projected Top Hung Sashes (PTH) Opening Angle 30 Degree Full Friction Stay Stainless 348.5mm Max Sash Height 800mm Max Weight 20KG 20 Percent Surcharge 20 Percent Surcharge
$67.38 (exc GST)
