INTERLOCK P1560B MODEL 230 A FRICTION HINGES

OBSOLETE CODESP362B - 240 CHH
 P126 - 200 AHI
 P135 - 200 Rolls
 P136 - 250 Rolls
 P154 - 200 Seymour
 P118 - 300 PTH Cowperthwaite
 P133 - 250 Hamilton Perry
 P144 - 250 PTH Horizon
 P147 - 300 PTH Horizon

REPLACEMENT CODEP1560B - 230 A

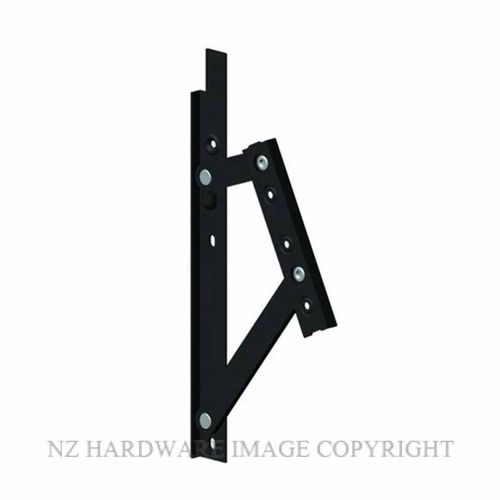

This complete range of 4-bar friction stays provides support and control of standard weight projected top hung (PTH) sashes. The A-Series friction hinges (stays) are manufactured from extruded aluminium and has no sliding channels.
Features
• A complete range to cater for most residential applications
• Manufactured with the unique “pull-in” feature
• Black powdercoated finish
Options
• Available in four sizes to cater for sashes weighing up to 43kg
Includes specific function models:
- ‘A’ Full friction
- ‘V’ Low friction
- ‘NF’ Non-friction
- ‘HD A’ Heavy Duty
• Non-friction model for use with window control mechanisms

If you require assistance with your selection please contact us either by email or phone.

Fire.pngNo Fixings Supplied
Dimension (A) - 110mm
Dimension (B) - 65mm
Dimension (C) - 29mm
Dimension (D) - NA
Dimension (E) - 30mm
Dimension (F) - 235mm
Dimension (G) - 172mm
Dimension (H) - NA
Dimension (I) -  NA
Dimension (J) -  55.5mm
Dimension (K) -  54mm
Function.pngMaximum Sash Height - 750
Maximum Sash Weight - 6KG
Full Friction Stay
Opening Angle - 45 Degree
Made From - Aluminium

Finish - Black

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Code Supplier Part Number Image Name Unit Application Function Product Features Finish Overall Length Height Capacity Returns Policy Privacy Policy Price Quantity
INTP1560B P1560B INTERLOCK P1560B MODEL 230A FRICTION HINGES BLACK
  • Unit:
    Pair
  • Application:
    Projected Top Hung Sashes (PTH)
  • Function:
    Opening Angle 45 Degree
  • Product Features:
    Full Friction Stay
  • Finish:
    Black
  • Overall Length:
    235mm
  • Height:
    Max Sash Height 750mm
  • Capacity:
    Max Weight 6KG
  • Returns Policy:
    20 Percent Surcharge
Pair Projected Top Hung Sashes (PTH) Opening Angle 45 Degree Full Friction Stay Black 235mm Max Sash Height 750mm Max Weight 6KG 20 Percent Surcharge 20 Percent Surcharge
$23.59 (exc GST)
