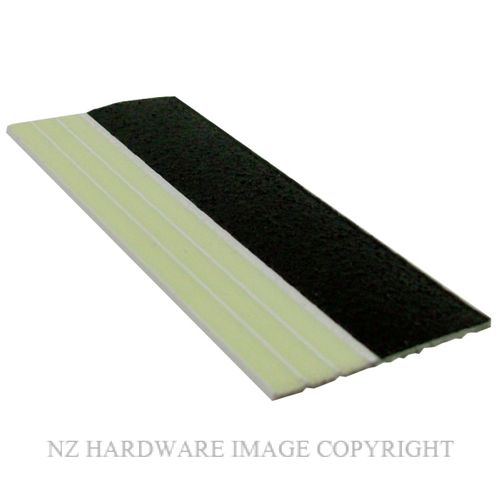

ECOGLO ECE2-071P PUNCHED STEP EDGE CONTRAST STRIP (SCREW FIX)

The ECE2-071 is designed to ensure visibility of steps in escape routes to meet NZBC Clause F6 “Visibility in Escape Routes”. The step edge contrast will be effective in all light conditions including during failure of the main lighting.

PERFORMANCE

Independently tested in accordance with UL 1994 for 10 metre visibility to meet NZBC Clause F6.

Risk Group C Building

30 minutes visibility Minimum charging illuminance of 20 lux continuously during occupancy.

Risk Group B Building

90 minutes visibility Minimum charging illuminance of 60 lux continuously during occupancy.

The step edge contrast is suitable for use indoors and outdoors.

The anti-slip material provides all weather protection from slips and falls. Anti-slip Properties AS/NZS 4586-2004 Classification: FV

UV Resistance

Loss of luminance after 1000 hrs ASTM G-155 Cycle 1 exposure: <10%

SUPPLY

The products are available in lengths of 100mm increments from 600mm to 1500mm to comply with IBC recommendations to mark the escape path on the front edge of the step to within 50mm of the wall or the side of the step.

COMPOSITION

Ecoglo E14-075 Step Edge Contrast is manufactured from extruded 6060T5 aluminium section. Silicon Carbide anti-slip materials and custom made photoluminescent pigment are embedded in thermoset polyester carriers to integrally bond the active ingredients into the aluminium following curing at high temperature. The photoluminescent area is also recessed into protective channels.

INSTALLATION

Indoors the E14-075 can be surface mounted on all smooth surfaces. Outdoors the E14-075 can be surface mounted onto concrete. Installation is a simple process using polyurethane adhesive. Maximum recommended length for outdoor installation is 1500mm. Screws can be used if adhesion is difficult.

Code Supplier Part Number Image Name Unit Overall Length Width Mounting Returns Policy Privacy Policy Price Quantity
ECE2-071P-800 E2-071P-800 ECOGLO ECE2-071P-800 PUNCHED STEP EDGE CONTRAST 37MM - 800MM
  • Unit:
    Each
  • Overall Length:
    800mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 800mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$16.11 (exc GST)
ECE2-071P-900 E2-071P-900 ECOGLO ECE2-071P-900 PUNCHED STEP EDGE CONTRAST 37MM - 900MM
  • Unit:
    Each
  • Overall Length:
    900mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 900mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$19.25 (exc GST)
ECE2-071P-1000 E2-071P-1000 ECOGLO ECE2-071P-1000 PUNCHED STEP EDGE CONTRAST 37MM - 1000MM
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$20.27 (exc GST)
ECE2-071P-1100 E2-071P-1100 ECOGLO ECE2-071P-1100 PUNCHED STEP EDGE CONTRAST 37MM - 1100MM
  • Unit:
    Each
  • Overall Length:
    1100mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1100mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$22.88 (exc GST)
ECE2-071P-1200 E2-071P-1200 ECOGLO ECE2-071P-1200 PUNCHED STEP EDGE CONTRAST 37MM - 1200MM
  • Unit:
    Each
  • Overall Length:
    1200mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1200mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$23.92 (exc GST)
ECE2-071P-1300 E2-071P-1300 ECOGLO ECE2-071P-1300 PUNCHED STEP EDGE CONTRAST 37MM - 1300MM
  • Unit:
    Each
  • Overall Length:
    1300mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1300mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$27.04 (exc GST)
ECE2-071P-1400 E2-071P-1400 ECOGLO ECE2-071P-1400 PUNCHED STEP EDGE CONTRAST 37MM - 1400MM
  • Unit:
    Each
  • Overall Length:
    1400mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1400mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$28.59 (exc GST)
ECE2-071P-1500 E2-071P-1500 ECOGLO ECE2-071P-1500 PUNCHED STEP EDGE CONTRAST 37MM - 1500MM
  • Unit:
    Each
  • Overall Length:
    1500mm
  • Width:
    37.3mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each 1500mm 37.3mm Screw Fix Non Returnable Item Non Returnable Item
$30.16 (exc GST)
