LOCKWOOD 120N 30 SERIES PADLOCKS (BLUE)

The 120N Series Padlock range includes 14 different models, with single, twin and quad packs (keyed alike), as well as extended shackle lengths for selected models.
All padlocks in this range come complete with jackets made from a tough silicone material which is weather resistant and UV stable to resist the impact of harsh environments.
The jackets also provide protection for both the padlock and the object to
which it is attached.
The 120N padlocks are suitable for general purpose applications providing for a broad range of applications.
FEATURES
• Pin tumbler locking
• Self-latching shackle function
PRODUCT DETAILS
Case Heavy duty solid brass bodies
(JACKET) Protective silicone jackets. Individual jacket colours for each model
(SHACKLES) Double locking shackle mechanism. Heavy duty chrome plated hardened steel shackles. Extended shackles on some 30mm and 40mm models
(STANDARDS & COMPLIANCE) Physical Security grades are employed for padlocks. These
grades are defined in part by the effective differs and key combinations. Padlocks Physical Security (SP) grade range from 2-6
Anti‑Corrosion. Corrosion Resistance Rating C3.
Environments that are sometimes damp in the majority of rural and suburban localites, including interiors where condensation may occur
Designed and tested to the Australian Padlock Standard AS4145.4 2002 and are rated for both security and corrosion resistance.

If you require assistance with your selection please contact us either by email or phone.

Padlock Body Width Measurement (A) 30mm
Padlock Body Height Measurement (B) 30mm
Shackle Diameter Measurement (C) 5mm
Shackle Vertical Clearance Measurement (D) 18mm - 50mm - 80mm
Shackle Horizontal Clearance Measurement (E) 17mm

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Code Supplier Part Number Image Name Unit Application Function Finish Horizontal Shackle Clearance Padlock Shackle Diameter Vertical Shackle Clearance Returns Policy Privacy Policy Price Quantity

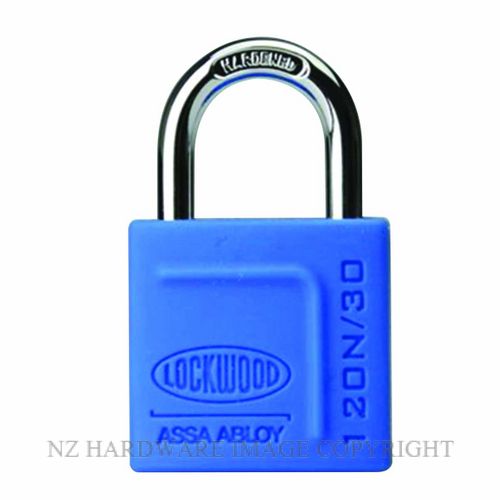

LW120N 30 118 DP 120N/30/118/DP LOCKWOOD 120N/30/118/DP 120N SERIES PADLOCK 30MM WITH 18MM SHACKLE WITH SILICON JACKET DP
  • Unit:
    Eack
  • Application:
    Keyed Padlocks
  • Function:
    Single Padlock
  • Finish:
    Blue
  • Horizontal Shackle Clearance:
    17mm
  • Padlock Shackle Diameter:
    5mm
  • Vertical Shackle Clearance:
    18mm
  • Returns Policy:
    20 Percent Surcharge
Eack Keyed Padlocks Single Padlock Blue 17mm 5mm 18mm 20 Percent Surcharge 20 Percent Surcharge
$18.12 (exc GST)

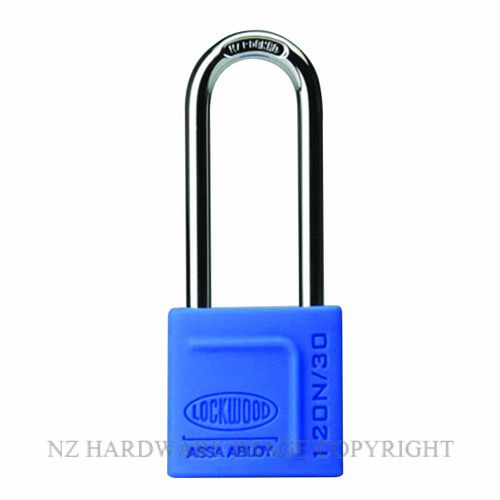

LW120N 30 150 DP 120N/30/150/DP LOCKWOOD 120N/30/150/DP 120N SERIES PADLOCK 30MM WITH 50MM SHACKLE WITH SILICON JACKET DP
  • Unit:
    Eack
  • Application:
    Keyed Padlocks
  • Function:
    Single Padlock
  • Finish:
    Blue
  • Horizontal Shackle Clearance:
    17mm
  • Padlock Shackle Diameter:
    5mm
  • Vertical Shackle Clearance:
    50mm
  • Returns Policy:
    20 Percent Surcharge
Eack Keyed Padlocks Single Padlock Blue 17mm 5mm 50mm 20 Percent Surcharge 20 Percent Surcharge
$19.83 (exc GST)

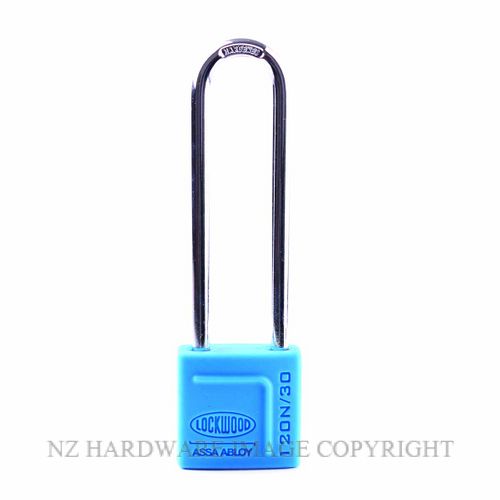

LW120N 30 180 DP 120N/30/180/DP LOCKWOOD 120N/30/180/DP 120N SERIES PADLOCK 30MM WITH 80MM SHACKLE WITH SILICON JACKET DP
  • Unit:
    Eack
  • Application:
    Keyed Padlocks
  • Function:
    Single Padlock
  • Finish:
    Blue
  • Horizontal Shackle Clearance:
    17mm
  • Padlock Shackle Diameter:
    5mm
  • Vertical Shackle Clearance:
    80mm
  • Returns Policy:
    20 Percent Surcharge
Eack Keyed Padlocks Single Padlock Blue 17mm 5mm 80mm 20 Percent Surcharge 20 Percent Surcharge
$20.20 (exc GST)

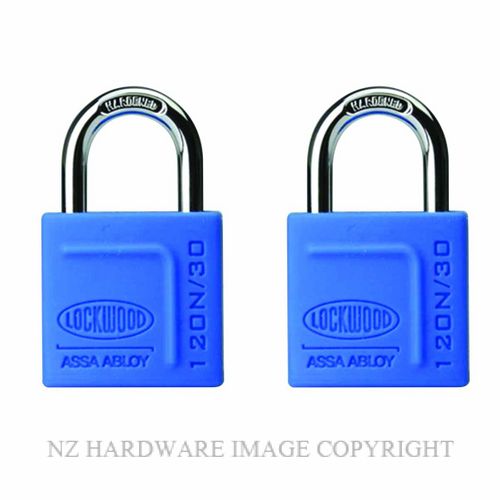

LW120N 30 118 2DP 120N/30/118/2DP LOCKWOOD 120N/30/118/2DP 120N SERIES PADLOCK 30MM WITH 18MM SHACKLE WITH SILICON JACKET 2DP
  • Unit:
    2 Pack
  • Application:
    Keyed Padlocks
  • Function:
    Twin Pack Keyed Alike
  • Finish:
    Blue
  • Horizontal Shackle Clearance:
    17mm
  • Padlock Shackle Diameter:
    5mm
  • Vertical Shackle Clearance:
    18mm
  • Returns Policy:
    20 Percent Surcharge
2 Pack Keyed Padlocks Twin Pack Keyed Alike Blue 17mm 5mm 18mm 20 Percent Surcharge 20 Percent Surcharge
$33.13 (exc GST)

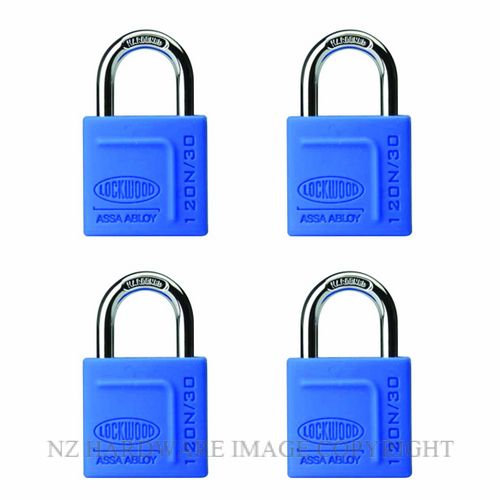

LW120N 30 118 4DP 120N/30/118/4DP LOCKWOOD 120N/30/118/4DP 120N SERIES PADLOCK 30MM WITH 18MM SHACKLE WITH SILICON JACKET 4DP
  • Unit:
    4 Pack
  • Application:
    Keyed Padlocks
  • Function:
    4 Pack Keyed Alike
  • Finish:
    Blue
  • Horizontal Shackle Clearance:
    17mm
  • Padlock Shackle Diameter:
    5mm
  • Vertical Shackle Clearance:
    18mm
  • Returns Policy:
    20 Percent Surcharge
4 Pack Keyed Padlocks 4 Pack Keyed Alike Blue 17mm 5mm 18mm 20 Percent Surcharge 20 Percent Surcharge
$62.89 (exc GST)
