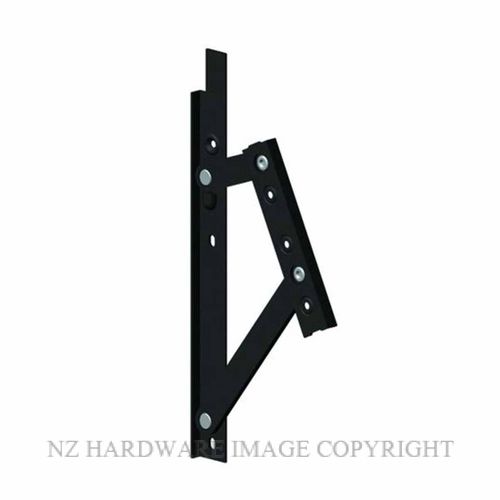

INTERLOCK P1561B MODEL 330A FRICTION HINGES BLACK

INTERLOCK P1561B MODEL 330A FRICTION HINGES BLACK
  • INTERLOCK P1561B MODEL 330A FRICTION HINGES BLACK
  • INTERLOCK P1561B MODEL 330A FRICTION HINGES BLACK

INTERLOCK P1561B MODEL 330 A FRICTION HINGES

OBSOLETE CODESP363B - 330 CHH
 P128 - 350 AHI
 P155 - 350 Seymour
 P156 - 400 Seymour
 P137 - 300 Rolls
 P138 - 350 Rolls
 P119 - 350 PTH Cowperthwaite
 P134 - 350 Hamilton Perry
 P145 - 400 PTH Horizon

REPLACEMENT CODEP1561B - 330 A

This complete range of 4-bar friction stays provides support and control of standard weight projected top hung (PTH) sashes. The A-Series friction hinges (stays) are manufactured from extruded aluminium and has no sliding channels.
Features
• A complete range to cater for most residential applications
• Manufactured with the unique “pull-in” feature
• Black powdercoated finish
Options
• Available in four sizes to cater for sashes weighing up to 43kg
Includes specific function models:
- ‘A’ Full friction
- ‘V’ Low friction
- ‘NF’ Non-friction
- ‘HD A’ Heavy Duty
• Non-friction model for use with window control mechanisms

If you require assistance with your selection please contact us either by email or phone.

Fire.pngNo Fixings Supplied
Dimension (A) - 198mm
Dimension (B) - 158mm
Dimension (C) - 79mm
Dimension (D) - NA
Dimension (E) - 30mm
Dimension (F) - 330mm
Dimension (G) - 266mm
Dimension (H) - NA
Dimension (I) -  133mm
Dimension (J) -  65mm
Dimension (K) -  54mm
Function.pngMaximum Sash Height - 1000mm
Maximum Sash Weight - 9KG
Full Friction Stay
Opening Angle - 35 Degree
Made From - Aluminium

Finish - Black

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Code Supplier Part Number Image Name Unit Application Function Product Features Finish Overall Length Height Capacity Returns Policy Privacy Policy Price Quantity
INTP1561B P1561B INTERLOCK P1561B MODEL 330A FRICTION HINGES BLACK
  • Unit:
    Pair
  • Application:
    Projected Top Hung Sashes (PTH)
  • Function:
    Opening Angle 35 Degree
  • Product Features:
    Full Friction Stay
  • Finish:
    Black
  • Overall Length:
    330mm
  • Height:
    Max Sash Height 1000mm
  • Capacity:
    Max Weight 9KG
  • Returns Policy:
    20 Percent Surcharge
Pair Projected Top Hung Sashes (PTH) Opening Angle 35 Degree Full Friction Stay Black 330mm Max Sash Height 1000mm Max Weight 9KG 20 Percent Surcharge 20 Percent Surcharge
$30.65 (exc GST)
