OPERATION:

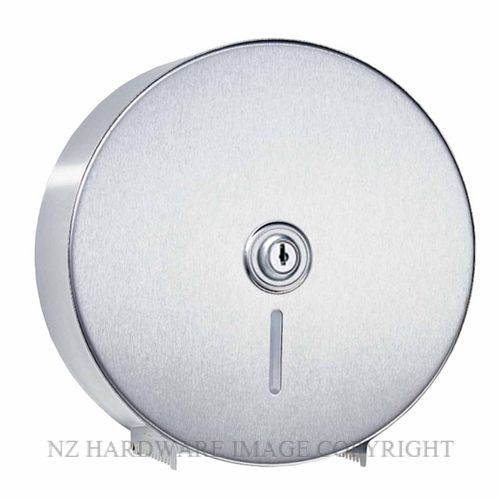

Door unlocks with key provided and swings down for loading dispenser. Spindle adapter accommodates one toilet tissue roll up to
10" (255mm) diameter with a (40mm) diameter core roll; convertible for (75mm) diameter core rolls. Rubber o-rings (2) (furnished by manufacturer) may be added to the steel inner spindle to accommodate a (55mm) diameter core roll. Wide viewing slot in door reveals the amount of toilet tissue on roll. Unit is designed for quick reloading.
INSTALLATION:
Mount unit on wall or toilet partition with sheet-metal screws at points indicated by an S. Rear edge of unit should be (510mm) from back wall. This locates toilet tissue within (180-230mm) of front of standard toilet that projects (305mm) from back wall.
If required, washers can added to the lower mounting screw holes to increase the spacing between the bottom of the unit and the mounting wall or toilet partition panel.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure with sheet-metal screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws (not
furnished), or provide 6mm (1/4") toggle bolts or expansion bolts.
For partitions with particle-board or other solid core, secure with sheet-metal screws (not furnished), or provide through-bolts, nuts,and washers. For hollow-core metal partitions, provide solid backing into which the sheet-metal screws can be secured. If two units are
installed back-to-back, then provide threaded sleeves and machine screws for the full thickness of partition.
