YALE VERONA 30MM 24MM 4 POINT LOCKING KITSETS (POWDERCOAT)

Yale Verona Optimum Hinged Door Lock
As part of the Palladium series, the Verona handle represents the highest standard of residential and semi-commercial door hardware. With superior performance and elegant styling the Verona handle complements a wide range of modern joinery. The handles have been created specifically for external doors with along plate design which complements aluminium joinery. By having a range of levers, also available on other escutcheons within ASSA ABLOY’s product range, customers can achieve a consistent look throughout the home by matching their internal and external door hardware.

The Optimum 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Optimum 4-Point provides increased security with up to four points of locking. The shoot bolt provides added security and seal compression, designed specifically for the New Zealand environment
Designed to be used in conjunction with the Verona and Palladium furniture ranges.

Features 4 points of locking from the latch, deadbolt and two shoot bolts
Sequencing of locking points can be in any order (can be locked with or without shoot bolts thrown)
The handing of the lockset is adjusted by reversing the orientation of the latch bolt
Stainless steel forend plate
Adjustable latch projection
Latch wear insert included
Achieves Australian Standards AS4145: 1993 (Part 2) Security Level S2 and Durability Level D2
The Verona furniture mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
Includes 7.6 mm square stepped spindle
When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors

Fire.pngSupplied With Fixings

Sets Come Complete With All Items Required For Standard Operation.
Lock strike plate not included with lock but can be purchased separately if required

Backset - 30mm
Bolt Throw -  24mm
Door Thickness - 35mm-41mm
Cylinder Length - 60mm - Double Keyed & Key & Turn
Cylinder Length - 30mm - Key Only Or Turn Only
4 Point Rod Lengths Supplied With Kitset - (1) 1Mtr - (1) 1.3Mtr
Pitch (Cylinder Spacing - 85mm


Lifting handles throws top & Bottom rods, pulling down handles when lock is unlocked retracts rods
Key or turn locks or unlocks handles

Available Finishes - Matt Black - Popular Powdercoat - Satin Chrome
For a list of available Popular Powdercoat colours refer related Products

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL POWDERCOAT PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Function Product Features Finish Backset Bolt Throw Returns Policy Privacy Policy Price Quantity

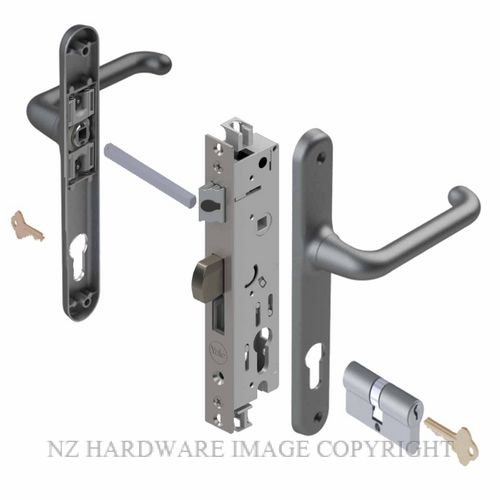

YLVR51101P VR51101P YALE VR51101P VERONA 30MM 4PT 24MM DOUBLE KEY LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Double Key Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    30mm
  • Bolt Throw:
    24mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Double Key Cylinder 4 Point Locking Locks Powdercoat 30mm 24mm Non Returnable Item Non Returnable Item
$299.25 (exc GST)

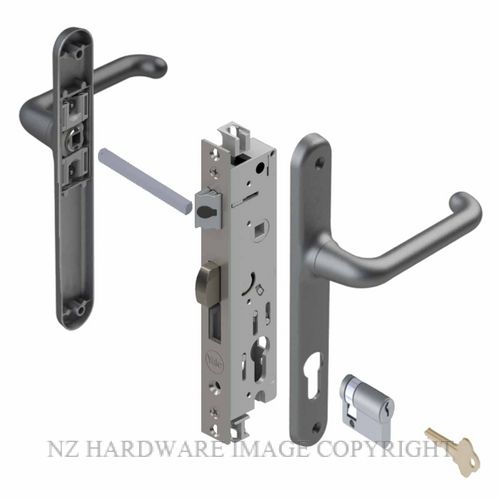

YLVR51102P VR51102P YALE VR51102P VERONA 30MM 4PT 24MM KEY-TURN LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Key & Turn Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    30mm
  • Bolt Throw:
    24mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Key & Turn Cylinder 4 Point Locking Locks Powdercoat 30mm 24mm Non Returnable Item Non Returnable Item
$299.25 (exc GST)

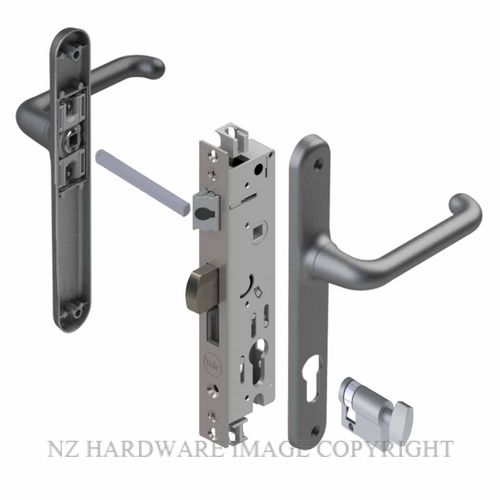

YLVR51104P VR51104P YALE VR51104P VERONA 30MM 4PT 24MM INT-TURN LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Int Turn Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    30mm
  • Bolt Throw:
    24mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Int Turn Cylinder 4 Point Locking Locks Powdercoat 30mm 24mm Non Returnable Item Non Returnable Item
$299.25 (exc GST)
YLVR51103P VR51103P YALE VR51103P VERONA 30MM 4PT 24MM INT-KEY LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Int Key Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    30mm
  • Bolt Throw:
    24mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Int Key Cylinder 4 Point Locking Locks Powdercoat 30mm 24mm Non Returnable Item Non Returnable Item
$299.25 (exc GST)
