YALE VERONA 40MM 4PT 13MM LOCK KITSET MATT BLACK

YALE VERONA 40MM 4PT 13MM LOCK KITSET MATT BLACK

YALE VERONA 40MM 13MM 4 POINT LOCKING KITSETS (MATT BLACK)

Yale Verona Optimum Hinged Door Lock As part of the Palladium series, the Verona handle represents the highest standard of residential and semi-commercial door hardware. With superior performance and elegant styling the Verona handle complements a wide range of modern joinery. The handles have been created specifically for external doors with along plate design which complements aluminium joinery. By having a range of levers, also available on other escutcheons within ASSA ABLOY’s product range, customers can achieve a consistent look throughout the home by matching their internal and external door hardware. The Optimum 4-Point Mortice Lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Optimum 4-Point provides increased security with up to four points of locking. The shoot bolt provides added security and seal compression, designed specifically for the New Zealand environment Designed to be used in conjunction with the Verona and Palladium furniture ranges. Features 4 points of locking from the latch, deadbolt and two shoot bolts Sequencing of locking points can be in any order (can be locked with or without shoot bolts thrown) The handing of the lockset is adjusted by reversing the orientation of the latch bolt Stainless steel forend plate Adjustable latch projection Latch wear insert included Achieves Australian Standards AS4145: 1993 (Part 2) Security Level S2 and Durability Level D2 The Verona furniture mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life Includes 7.6 mm square stepped spindle When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
	Supplied With Fixings
	Sets Come Complete With All Items Required For Standard Operation. Lock strike plate not included with lock but can be purchased separately if required
	Backset - 40mm Bolt Throw - 13mm Door Thickness - 35mm-41mm Cylinder Length - 60mm - Double Keyed & Key & Turn Cylinder Length - 30mm - Key Only Or Turn Only 4 Point Rod Lengths Supplied With Kitset - (1) 1Mtr - (1) 1.3Mtr Pitch (Cylinder Spacing - 85mm
	Lifting handles throws top & Bottom rods, pulling down handles when lock is unlocked retracts rods Key or turn locks or unlocks handles
	Available Finishes - Matt Black - Popular Powdercoat - Satin Chrome FOR RELATED PRODUCTS REFER BOTTOM OF PAGE CLICK TO VIEW ALL BLACK PRODUCTS

Downloadable Files

Downloads

Code	Supplier Part Number	Image	Name	Unit	Function	Product Features	Finish	Backset	Bolt Throw	Returns Policy	Privacy Policy	Price	Quantity

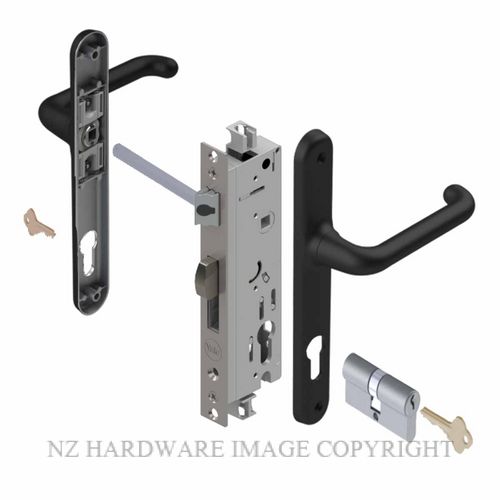

YLVR50901B	VR50901B		YALE VR50901B VERONA 40MM 4PT 13MM DOUBLE KEY LOCKSET MATT BLACK Unit: Set Function: Lock Kit With Double Key Cylinder Product Features: 4 Point Locking Locks Finish: Black Backset: 40mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Double Key Cylinder	4 Point Locking Locks	Black	40mm	13mm	Non Returnable Item	Non Returnable Item	$300.35 (exc GST)	Quantity:

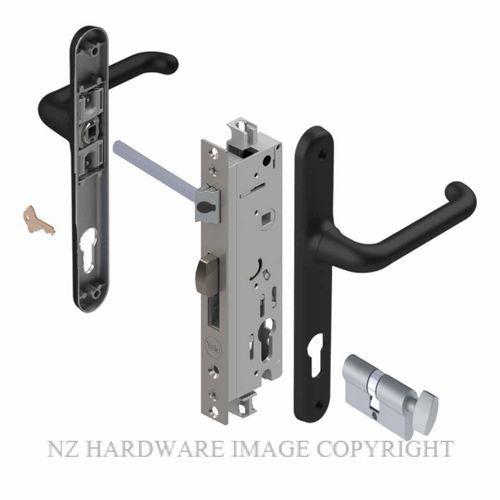

YLVR50902B	VR50902B		YALE VR50902B VERONA 40MM 4PT 13MM KEY-TURN LOCKSET MATT BLACK Unit: Set Function: Lock Kit With Key & Turn Cylinder Product Features: 4 Point Locking Locks Finish: Black Backset: 40mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Key & Turn Cylinder	4 Point Locking Locks	Black	40mm	13mm	Non Returnable Item	Non Returnable Item	$300.35 (exc GST)	Quantity:
YLVR50904B	VR50904B		YALE VR50904B VERONA 40MM 4PT 13MM INT-TURN LOCKSET MATT BLACK Unit: Set Function: Lock Kit With Int Turn Cylinder Product Features: 4 Point Locking Locks Finish: Black Backset: 40mm Bolt Throw: 13mm Returns Policy: Non Returnable Item	Set	Lock Kit With Int Turn Cylinder	4 Point Locking Locks	Black	40mm	13mm	Non Returnable Item	Non Returnable Item	$300.35 (exc GST)	Quantity:
