YALE VERONA 40MM 4PT 13MM LOCK KITSET POWDERCOAT

YALE VERONA 40MM 4PT 13MM LOCK KITSET POWDERCOAT

YALE VERONA PALLADIUM 40MM 4 POINT LOCKING KITSETS (POWDERCOAT)

Yale Verona Induro Hinged Door Lock

The Verona handle represents the highest standard of residential and semi-commercial door hardware. With full grip lever the Verona handle complements a wide range of modern joinery. The handles have been created specifically for external doors as a quality and stylish door handle option which complements aluminium joinery.

The Induro mortice lock offers a new and improved locking system with enhanced furniture options available. When deadlocked, the Induro 4-Point provides increased security with four points of locking. Made specifically for the New Zealand environment, this is an ideal locking solution.

Designed to be used in conjunction with the Verona and Palladium furniture ranges.

Features

  • Features 4 points of locking from the latch, deadbolt and two shootbolts (included)
  • Sequencing of locking points can be in any order (can be locked with or without shootbolts thrown)
  • The handing of the lockset is adjusted by reversing the orientation of the latch bolt
  • 30mm backset mortise lock
  • 13mm short throw on lifting deadbolt
  • 85mm pitch
  • Stainless steel forend plate
  • Adjustable latch projection
  • Latch wear insert included
  • Achieves Australian Standards AS4145: 2008
  • The Verona furniture mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
  • Includes 7.6 mm square stepped spindle
  • 30/30 Euro cylinder and turn
  • When used with the correct strike the lock generates optimum seal compression to provide improved water and air seal performance, especially for large panel doors
  • Designed for aluminium joinery suites
Fire.pngSupplied With Fixings

Sets Come Complete with handle set-lock body & cylinder.
Lock strike plate & 4 point locking rods are not included but can be purchased separately if required

Backset - 40mm
Bolt Throw -  13mm
Door Thickness - 35mm-41mm
Cylinder Length - 60mm - Double Keyed & Key & Turn
Cylinder Length - 30mm - Key Only Or Turn Only
4 Point Rod Lengths Not Supplied With Kitset - (1) 1Mtr - (1) 1.3Mtr
Pitch (Cylinder Spacing - 85mm


Lifting handles throws top & Bottom rods, pulling down handles when lock is unlocked retracts rods
Key or turn locks or unlocks handles

Available Finishes - Matt Black - Popular Powdercoat - Satin

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL POWDERCOAT PRODUCTS

Code Supplier Part Number Image Name Unit Function Product Features Finish Backset Bolt Throw Returns Policy Privacy Policy Price Quantity

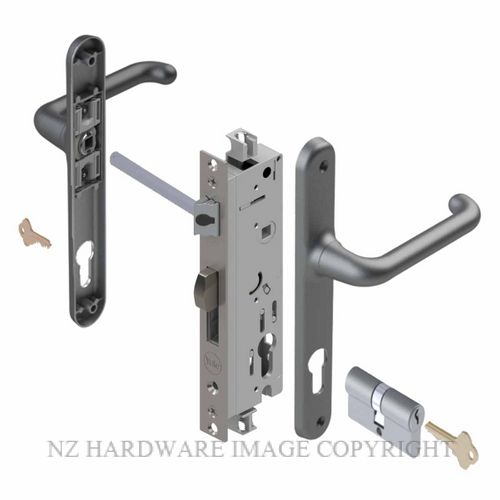

YLVR83101P VR83101P YALE VR83101P VERONA 40MM 4PT 13MM DOUBLE KEY LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Double Key Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Double Key Cylinder 4 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
Retail: $292.37 (exc GST)
Special: $260.21 (exc GST)

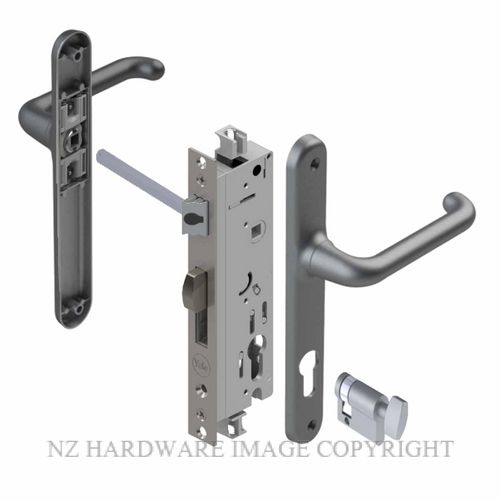

YLVR83102P VR83102P YALE VR83102P VERONA 40MM 4PT 13MM KEY-TURN LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Key & Turn Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Key & Turn Cylinder 4 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
Retail: $300.72 (exc GST)
Special: $267.65 (exc GST)
YLVR83104P VR83104P YALE VR83104P VERONA 40MM 4PT 13MM INT-TURN LOCKSET POWDERCOAT
  • Unit:
    Set
  • Function:
    Lock Kit With Int Turn Cylinder
  • Product Features:
    4 Point Locking Locks
  • Finish:
    Powdercoat
  • Backset:
    40mm
  • Bolt Throw:
    13mm
  • Returns Policy:
    Non Returnable Item
 Set Lock Kit With Int Turn Cylinder 4 Point Locking Locks Powdercoat 40mm 13mm Non Returnable Item Non Returnable Item
Retail: $292.37 (exc GST)
Special: $260.21 (exc GST)
