RAVEN RP70SI AUTO DOOR BOTTOM SEAL

RAVEN RP70SI AUTO DOOR BOTTOM SEAL
  • RAVEN RP70SI AUTO DOOR BOTTOM SEAL
  • RAVEN RP70SI AUTO DOOR BOTTOM SEAL
Smoke.pngAmbient (cold) Smoke
Smoke.pngMedium Temp Smoke Proof
Sound.pngNoise - Acoustic
Function.pngLight Proof
Messure Volume.pngEnergy,Draught and Dust
Insect.pngInsects and Vermin
Wheelchair.pngAccess and Mobility
Fire.pngFire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

PRODUCT DESCRIPTION

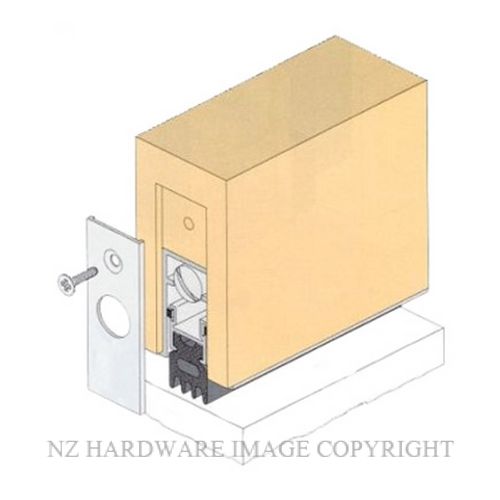

RP70Si automatic door seal is the fully morticed version of theRP38Si door seal. It is a heavy duty door bottom seal which is spring loaded to lift clear off the floor as soon as the door leaf is opened by a few millimetres.

The seal is operated automatically by pressure against the doorjamb on the adjusting screw. It seals when the door closes and retracts automatically when door is opened. It is self levelling.

When using RP70Si door bottom seal, the door must be a minimum of 45mm thick and of suitable construction for morticing this seal. It is reversible for left and right handed operation.

Note: For double door bottoms, plain meeting stiles are required

STANDARD LENGTHS MAXIMUM THE STANDARD LENGTH CAN BE CUT DOWN TO
1500MM 1220MM
1220MM1070MM
1070MM920MM
920MM610MM
610MM450MM
450MM 300MM

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Mounting Returns Policy Privacy Policy Price Quantity
RP70SI 450 CA A70SIC18 RAVEN RP70SI DOOR BOTTOM SEAL AUTO 450MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .45 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial Door Bottom Seals Clear Anodised .45 Metre Screw Fix Non Returnable Item Non Returnable Item
$119.76 (exc GST)
Unavailable for Online Purchase, Contact Us
RP70SI 610 CA A70SIC24 RAVEN RP70SI DOOR BOTTOM SEAL AUTO 610MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .61 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial Door Bottom Seals Clear Anodised .61 Metre Screw Fix Non Returnable Item Non Returnable Item
$148.01 (exc GST)
Unavailable for Online Purchase, Contact Us
RP70SI 920 CA A70SIC36 RAVEN RP70SI DOOR BOTTOM SEAL AUTO 920MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .92 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial Door Bottom Seals Clear Anodised .92 Metre Screw Fix Non Returnable Item Non Returnable Item
$173.99 (exc GST)
Unavailable for Online Purchase, Contact Us
RP70SI 1070 CA A70SIC42 RAVEN RP70SI DOOR BOTTOM SEAL AUTO 1070MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.07 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial Door Bottom Seals Clear Anodised 1.07 Metres Screw Fix Non Returnable Item Non Returnable Item
$187.20 (exc GST)
Unavailable for Online Purchase, Contact Us
RP70SI 1220 CA A70SIC48 RAVEN RP70SI DOOR BOTTOM SEAL AUTO 1220MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.22 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial Door Bottom Seals Clear Anodised 1.22 Metres Screw Fix Non Returnable Item Non Returnable Item
$212.82 (exc GST)
Unavailable for Online Purchase, Contact Us
RP70SI 1500 CA A70SIC60 RAVEN RP70SI DOOR BOTTOM SEAL AUTO 1500MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.5 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Acoustic,Cold Smoke,Energy Draughts And Dust,Access And Mobility,Insects And Vermin,Light,Fire Approved,Medium Temp Smoke,Antimicrobial Door Bottom Seals Clear Anodised 1.5 Metres Screw Fix Non Returnable Item Non Returnable Item
$253.58 (exc GST)
Unavailable for Online Purchase, Contact Us
