RAVEN RP99SI DOOR BOTTOM SEAL

RAVEN RP99SI DOOR BOTTOM SEAL
  • RAVEN RP99SI DOOR BOTTOM SEAL
  • RAVEN RP99SI DOOR BOTTOM SEAL
Smoke.pngAmbient (cold) Smoke
Smoke.pngMedium Temp Smoke Proof
Sound.pngNoise - Acoustic
Function.pngLight Proof
Messure Volume.pngEnergy,Draught and Dust
Insect.pngInsects and Vermin
Wheelchair.pngAccess and Mobility
Fire.pngFire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

PRODUCT DESCRIPTION

RP99Si is a heavy duty automatic door bottom seal which is spring loaded to lift clear off the floor as soon as the door leaf is opened by a few millimetres.

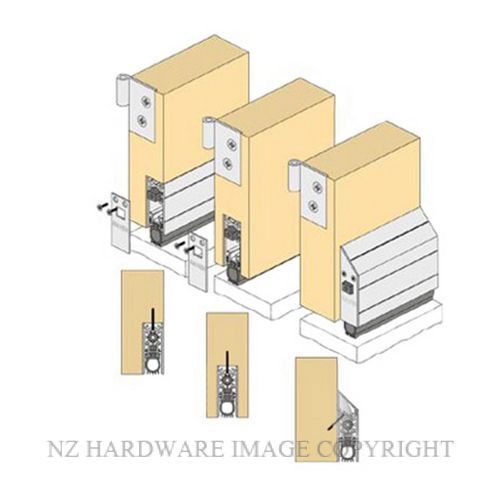

RP99Si has an extruded silicon component for medium temperature smoke and is an acoustically designed seal for face mounted, semi-morticed or fully morticed applications. The door bottom seal is operated automatically by pressure against the door jamb on its adjustment block (strike).

Note: Face mount aluminium angle and all escutcheon plates included

RP128

RP128si is not currently available in NZ. Recommended alternative seal is RP99si. RP99si meets the same standards and codes as RP128si but with the added feature of face mounted, semi morticed or full morticed installation. RP128si can only be face mounted


STANDARD LENGTHS MAXIMUM THE STANDARD LENGTH CAN BE CUT DOWN TO
1220mm1220mm
1070mm920mm
920mm820mm
820mm720mm
720mm600mm
600mm380mm
380mm 295mm

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Mounting Returns Policy Privacy Policy Price Quantity
RP99SI 380 CA A99SIC15 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 380MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .38 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised .38 Metres Screw Fix Non Returnable Item Non Returnable Item
$116.67 (exc GST)
Unavailable for Online Purchase, Contact Us
RP99SI 600 CA A99SIC24 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 600MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .6 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised .6 Metre Screw Fix Non Returnable Item Non Returnable Item
$145.47 (exc GST)
Unavailable for Online Purchase, Contact Us
RP99SI 720 CA A99SIC28 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 720MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .72 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised .72 Metre Screw Fix Non Returnable Item Non Returnable Item
$148.50 (exc GST)
Unavailable for Online Purchase, Contact Us
RP99SI 820 CA A99SIC32 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 820MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .82 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised .82 Metre Screw Fix Non Returnable Item Non Returnable Item
$156.98 (exc GST)
Unavailable for Online Purchase, Contact Us
RP99SI 920 CA A99SIC36 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 920MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    .92 Metre
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised .92 Metre Screw Fix Non Returnable Item Non Returnable Item
$170.93 (exc GST)
Unavailable for Online Purchase, Contact Us
RP99SI 1070 CA A99SIC42 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 1070MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.07 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised 1.07 Metres Screw Fix Non Returnable Item Non Returnable Item
$187.99 (exc GST)
Unavailable for Online Purchase, Contact Us
RP99SI 1220 CA A99SIC48 RAVEN RP99SI DOOR BOTTOM SEAL AUTO 1220MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1.22 Metres
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each ,Acoustic,Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Light,Insects And Vermin,Fire Approved,Access And Mobility,Antimicrobial Door Bottom Seals Clear Anodised 1.22 Metres Screw Fix Non Returnable Item Non Returnable Item
$217.83 (exc GST)
Unavailable for Online Purchase, Contact Us
