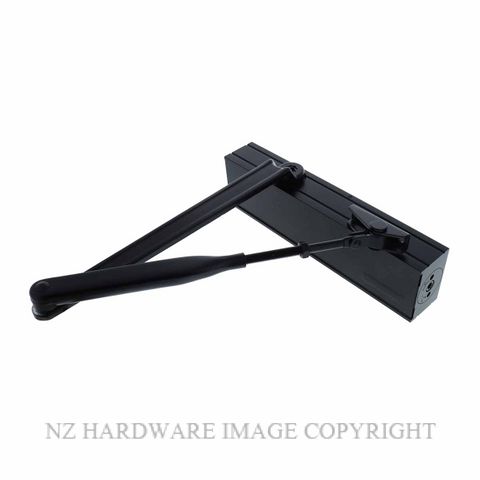

The Carbine Radius Rack & Pinion series includes four models with adjustable closing, latching speeds, and back check. They are all single-action closers with a transom mount on the push side and non-handed installation making them easy to install on inward or outward opening doors. The Carbine Radius Rack & Pinion door closers are supplied with everything you need for your next installation including standard and parallel arm fittings, and timber and self-drilling metal screws - Fire rated for 2 hours
- Constructed from 6061 grade aluminum
- Tested to EN1154 standards
- Cycle tested to 500,000 cycles
- Standard arm 180 degree opening
- Parallel arm 130 degree opening
- Sliding arm pull 180 degree, push 110 degree opening (120 degree CDC-5)
- Hold open 130 degree opening (180 degree, hold open angle 70-150 degree CDC-5)
- Adjustable closing & latching speed
- Adjustable back check 70 to 90 degrees
- Thermo-constant valve
- Surface mount
- Transom mount on push side
- Rack & pinion
- Positional mounting for closer strength
- Supplied with standard and parallel arm fittings
- Single-action door
- Non-handed installation
- Supplied with timber and self-drilling metal screws
- Constructed with extruded anodized aluminium body
- Slide rail arms for the CDC range include the hold open insert
Adjustable power size 2-4 Spring power adjustable- Body size 236mm x 60mm x 39mm
Door closers are to be installed on the interior face of a door not the exterior If you require assistance with your selection please contact us either by email or phone. |
