KILARGO IS7090SI PERIMETER SEAL  (CLEAR ANODISED)

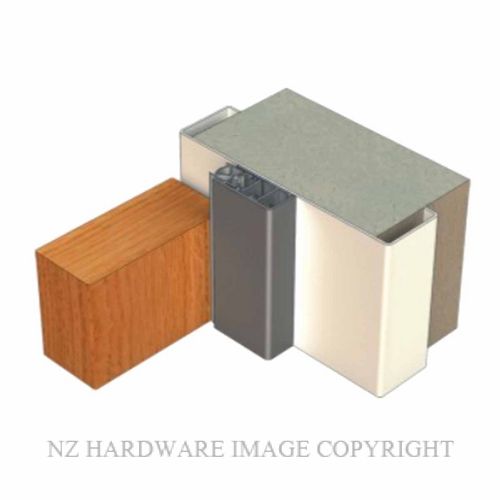

IS7090si self-adjusting and adjustable (spring-loaded) perimeter seal is designed for high performance acoustic applications. This seal can be fitted to the head and jambs of door frame perimeters in lieu of door stops, where frames are non fire-rated.

It’s unique spring loaded mechanism, automatically self-adjusts to cater for movement or uneven doors. It is also mechanically adjustable to ensure the desired seal is maintained.
Durable polypropylene fins are incorporated within the gasket housing to provide additional smoke and acoustic sealing properties. An aesthetic, anodised aluminium tamper-proof cover plate simply clips onto the main carrier to conceal fixings.

The IS7090si has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).


If you require assistance with your selection please contact us either by email or phone.

Smoke.pngAmbient (cold) Smoke
Smoke.pngMedium Temp Smoke Proof
Sound.pngNoise - Acoustic
Messure Volume.pngEnergy,Draught and Dust
Fire.pngFire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

Lengths - 1000mm - 1250mm - 1500mm - 1750mm - 2000mm - 2250mm - 2500mm - 2750mm - 3000mm - 3250mm - 3500mm
Height - 42.5mm
Width - 20mm

Available Finish - Clear Anodised

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Mounting Notes Returns Policy Notes Privacy Policy Price Quantity
KLIS7090SI 1000MM CA 9.47E+12 KILARGO IS7090SI 1000MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1000mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 1000mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$133.96 (exc GST)
KLIS7090SI 1250MM CA 9.47E+12 KILARGO IS7090SI 1250MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1250mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 1250mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$167.38 (exc GST)
KLIS7090SI 1500MM CA 9.47E+12 KILARGO IS7090SI 1500MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1500mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 1500mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$200.88 (exc GST)
KLIS7090SI 1750MM CA 9.47E+12 KILARGO IS7090SI 1750MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1750mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 1750mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$234.40 (exc GST)
KLIS7090SI 2000MM CA 9.47E+12 KILARGO IS7090SI 2000MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    2000mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 2000mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$267.82 (exc GST)
KLIS7090SI 2250MM CA 9.47E+12 KILARGO IS7090SI 2250MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    2250mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 2250mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$301.34 (exc GST)
KLIS7090SI 2500MM CA 9.47E+12 KILARGO IS7090SI 2500MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    2500mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 2500mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$334.75 (exc GST)
KLIS7090SI 2750MM CA 9.47E+12 KILARGO IS7090SI 2750MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    2750mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 2750mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$368.26 (exc GST)
KLIS7090SI 3000MM CA 9.47E+12 KILARGO IS7090SI 3000MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    3000mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 3000mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$602.39 (exc GST)
KLIS7090SI 3250MM CA 9.47E+12 KILARGO IS7090SI 3250MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    3250mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 3250mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$513.00 (exc GST)
KLIS7090SI 3500MM CA 9.47E+12 KILARGO IS7090SI 3500MM PERIMETER SEAL CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Frame Or Perimeter Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    3500mm
  • Mounting:
    Screw Fix
  • Notes:
    Lead Time 4 to 6 Weeks
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Frame Or Perimeter Seals Clear Anodised 3500mm Screw Fix Lead Time 4 to 6 Weeks Non Returnable Item Lead Time 4 to 6 Weeks Non Returnable Item
$690.52 (exc GST)
