KILARGO IS8100SI AUTOMATIC DOOR BOTTOM SEAL (CLEAR ANODISED)

A heavy duty, automatic door bottom seal which is fully-mortised into the bottom edge of single action doors. The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

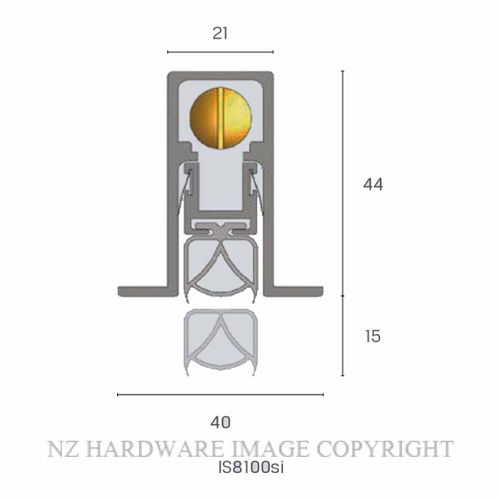

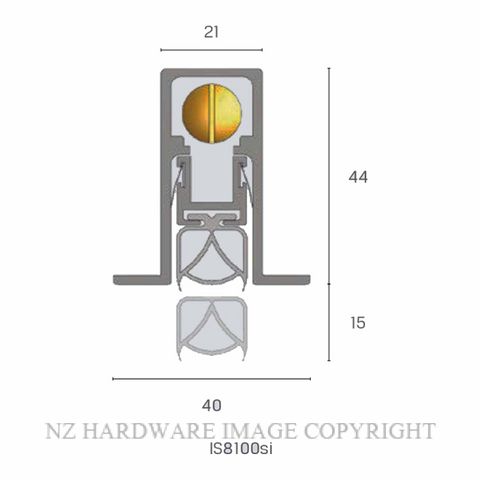

The seal is mounted into a 43mm deep x 21mm wide machined groove along the underside of the door. The seal is screw-fixed into position through the mounting flanges. Aesthetic, rigid nylon push-fit end plates (or screw-fixed cast aluminium end plates) ensure longevity of the seal mechanism.

The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).

If you require assistance with your selection please contact us either by email or phone.

Smoke.pngAmbient (cold) Smoke
Smoke.pngMedium Temp Smoke Proof
Sound.pngNoise - Acoustic
Messure Volume.pngEnergy,Draught and Dust
Wheelchair.pngAccess and Mobility
Fire.pngFire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

Length - 450mm Will Cut Down To 275mm
Length - 610mm Will Cut Down To 450mm
Length - 920mm Will Cut Down To 610mm
Length - 1070mm Will Cut Down To 920mm
Height - 44mm
Width - 40mm

Available Finish - Clear Anodised

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Mounting Returns Policy Privacy Policy Price Quantity
KLIS8100SI 0450MM CA 9.47E+12 KILARGO IS8100SI 0450MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    450mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Bottom Seals Clear Anodised 450mm Screw Fix Non Returnable Item Non Returnable Item
$202.52 (exc GST)
KLIS8100SI 0610MM CA 9.47E+12 KILARGO IS8100SI 0610MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    610mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Bottom Seals Clear Anodised 610mm Screw Fix Non Returnable Item Non Returnable Item
$179.78 (exc GST)
KLIS8100SI 0920MM CA 9.47E+12 KILARGO IS8100SI 0920MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    920mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Bottom Seals Clear Anodised 920mm Screw Fix Non Returnable Item Non Returnable Item
$227.34 (exc GST)
KLIS8100SI 1070MM CA 9.47E+12 KILARGO IS8100SI 1070MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    1070mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Bottom Seals Clear Anodised 1070mm Screw Fix Non Returnable Item Non Returnable Item
$247.73 (exc GST)
