KILARGO IS8091SI AUTOMATIC DOOR BOTTOM SEAL (CLEAR ANODISED)

A heavy duty, automatic door bottom seal which can be semirebated or facefixed to the bottom edge of single action doors. The seal has a spring loaded mechanism which lifts the seal clear of the floor as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically Face-fixed: The seal is fixed to the face of the door bottom using the f ixing screws provided. A set of rigid push-fit reinforced nylon end plates ensure longevity of the seal mechanism. Semi-rebated: When the seal is to be semi-rebated, the seal is mounted into a stepped rebate: a 44mm deep x 21mm wide machined groove (for the bottom section), plus a 25mm deep x 3mm wide machined recess (for the top flange), on the side of the door to which the seal will be positioned. The seal can be screwf ixed into position through the flange and fitted with cast aluminium end plates. The seal contains a high efficiency mechanism to assist with the closing force requirements detailed in AS1428/1 (Design for Access and Mobility).


If you require assistance with your selection please contact us either by email or phone.

Smoke.pngAmbient (cold) Smoke
Smoke.pngMedium Temp Smoke Proof
Sound.pngNoise - Acoustic
Messure Volume.pngEnergy,Draught and Dust
Wheelchair.pngAccess and Mobility
Fire.pngFire (approved) New Zealand NZS 4520 and NZ Building Code Compliance Document C.

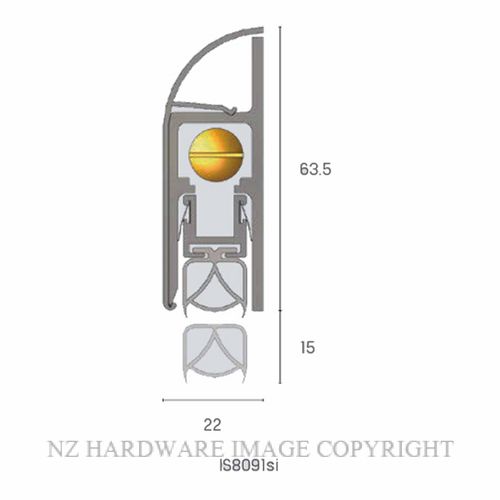

Length - 920mm Will Cut Down To 610mm
Height - 63.5mm
Width - 22mm

Available Finish - Clear Anodised

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Finish Overall Length Mounting Returns Policy Privacy Policy Price Quantity
KLIS8091SI 0920MM CA 9.47E+12 KILARGO IS8091SI 0920MM CLEAR ANODISED
  • Unit:
    Each
  • Application:
    Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial
  • Function:
    Door Bottom Seals
  • Finish:
    Clear Anodised
  • Overall Length:
    920mm
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each Energy Draughts And Dust,Cold Smoke,Medium Temp Smoke,Fire Approved,Acoustic,Antimicrobial Door Bottom Seals Clear Anodised 920mm Screw Fix Non Returnable Item Non Returnable Item
$243.41 (exc GST)
