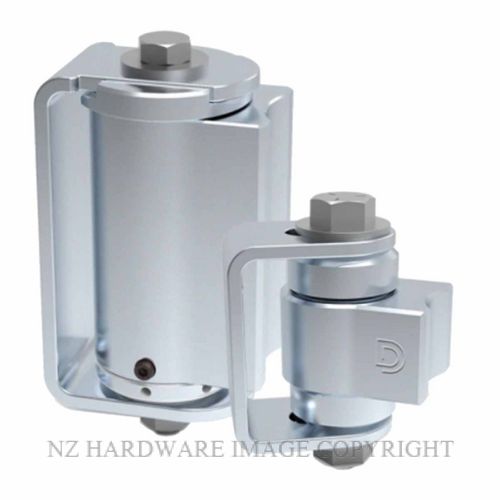

D&D SHUT IT® Self-Closing BadAss Weld-On Hinge Set
With the D&D SHUT IT® BadAss Self-Closing Hinge you no longer need a separate closer for jobs that require a self-closing gate. The closer is built into the hinge! Get the benefits of the best heavy duty gate hinge and a reliable closer in one package. Save hundreds on poorly designed gate closers and hydraulic door closers that are adapted to gate systems.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features - 1 Self-closing hinge + Original BadAss hinge
- Easy to install, heavy duty self-closing hinge
- 5 tension-adjustment settings (inc bracket)
- Gate swings from -5º to 110º
- Load rating per gate: 500kg (2,000 lbs)
- Self-closing maximum gate weight:130kg (300 lbs)
- Steel bracket and body
- Hiinge weight 2.5kg
- Supplied in trade pack - 1 each
Specification
- Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Type: Self-Closing
- Gate Material: Steel or Ornamental Iron
- Self-Closing Gate Weight: Up to 130kg (300lbs)
- Approximate Gate Width 2000mm
- Approximate Gate Height 3000mm
- Gate Frame/Post Shape: Square-to-Square, Square-to-Round
- Minimum Post Size: 38mm+
- Ideal Gate Gap: 61mm to 74mm
- Fixing Method: Weld-On
If you require assistance with your selection please contact us either by email or phone. |
