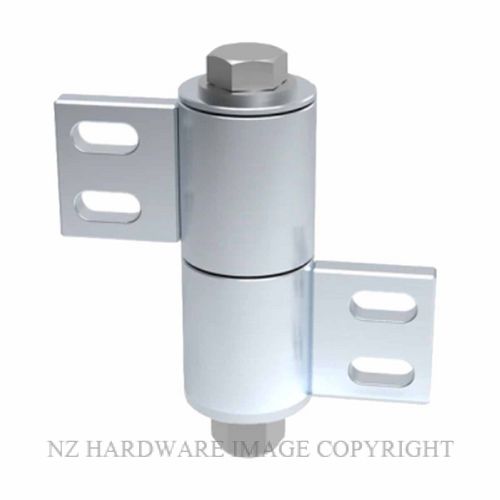

D&D SHUT IT® BadAss Barrel Weld-On Hinge
The D&D SHUT IT® BadAss Barrel Hinge is the strongest and most versatile gate hinge on the market. Ideal for nearly all heavy-duty gate installations the D&D SHUT IT® BadAss Barrel Hinge is the game changer in the industry. The gate hinge can be installed where a full 180 degree gate opening is required and has the ability to reduce the gap between end post and gate to under 13mm.
Unique Stover Locknut™
an innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm. The top thread section is deformed to create two or three locking zones (can be re-used 2-3 times). The all-metal locknuts withstand higher temperatures than nylon-insert locknuts.
High Temperature Sealed Bearings
Safe to powder-coat with hinges installed on the gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss). No greasing, no maintenance; hinge options include 1, 2, 3 or 4 bearings and performs better than roller cages that require periodic greasing.
Features - The strongest and most versatile hinge on the market
- Ideal for nearly all flat post installations
- Bolt-on and weld-on installations
- Swings 180º if required
- Load rating per gate: 1,360kg (3,000 lbs)
- Maximum gate weight: 680kg (1,500 lbs)
- Steel bracket and body
- Hinge weight 1.8kg
Specification
- Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
- Gate Type: Non Self-Closing
- Gate Material: Steel or Ornamental Iron
- Approximate Gate Width 2000mm
- Approximate Gate Height 3000mm
- Gate Frame/Post Shape: Square-to-Square
- Minimum Post Size: 40mm+
- Ideal Gate Gap: Fixed at 13mm
- Fixing Method: Bolt-On, Weld-On
If you require assistance with your selection please contact us either by email or phone. |
