The H3-001 Handrail is designed to ensure visibility of handrails in escape routes to meet NZBC Clause F6  ‘Visibility in Escape Routes’. 15.5mm Radius eg 21.5mm Risk Group B Building 90 minutes visibility Minimum charging illuminance of 60 lux continuously during occupancy. The H3-001 Handrail Strip will be effective in all light conditions including during failure of the main lighting.
PERFORMANCE Independently tested in accordance with UL1994 for 10 metre visibility to meet NZBC Clause F6.

Risk Group C Building 30 minutes visibility Minimum charging illuminance of 20 lux continuously during occupancy.

Risk Group B Building 90 minutes visibility Minimum charging illuminance of 60 lux continuously during occupancy.

The Handrail Strip is suitable for use indoors and outdoors.
UV Resistance, Loss of luminance after 1000 hrs ASTM G-155 Cycle 1 exposure: <10%
SUPPLY The products are available in 1 metre lengths. H3-001T-1000

COMPOSITION Ecoglo H3-001 Handrail Strip is manufactured from extruded 6060T5 aluminium section. Custom made photoluminescent pigment are embedded in thermoset polyester carriers to integrally bond the active ingredients into the aluminium following curing at high temperature. The photoluminescent area is also recessed into protective channels.

The Handrail Strip Is Available in 1000 & 1500 Lengths
Width - 15.5mm
Fixing - Self Adhesive

HREC3 Screw fix end caps are available in Black Or White
HRKC3 Screw fix jointer caps are available in Black Or White

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Overall Length Width Mounting Returns Policy Privacy Policy Price Quantity

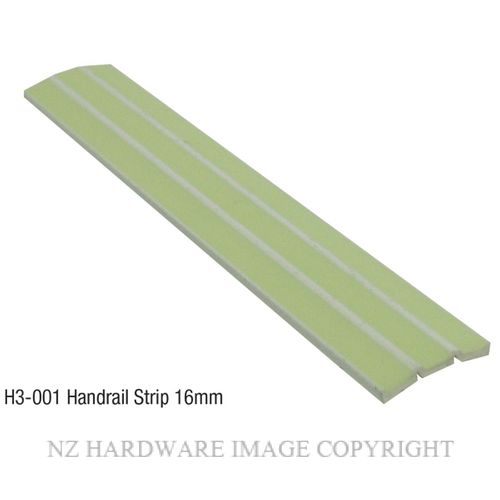

ECH3-001T-1000 H3-001T-1000 ECOGLO ECH3-001T-1000 HANDRAIL STRIP 16MM - 1000MM WITH FOAM TAPE
  • Unit:
    Each
  • Overall Length:
    1000mm
  • Width:
    15.5mm
  • Mounting:
    Self Adhesive
  • Returns Policy:
    Non Returnable Item
 Each 1000mm 15.5mm Self Adhesive Non Returnable Item Non Returnable Item
$17.85 (exc GST)
ECH3-001T-1500 H3-001T-1500 ECOGLO ECH3-001T-1500 HANDRAIL STRIP 16MM - 1500MM WITH FOAM TAPE
  • Unit:
    Each
  • Overall Length:
    1500mm
  • Width:
    15.5mm
  • Mounting:
    Self Adhesive
  • Returns Policy:
    Non Returnable Item
 Each 1500mm 15.5mm Self Adhesive Non Returnable Item Non Returnable Item
$27.20 (exc GST)

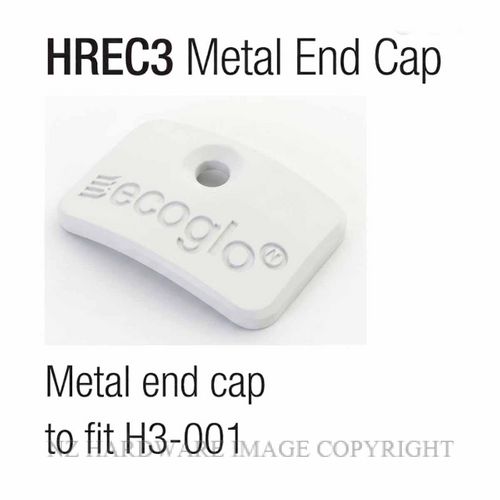

ECHREC3 WHT HREC3.WHT ECOGLO HREC3.WHT METAL END CAP FOR HANDRAIL STRIP WHITE
  • Unit:
    Each
  • Overall Length:
    -
  • Width:
    -
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each - - Screw Fix Non Returnable Item Non Returnable Item
$1.87 (exc GST)

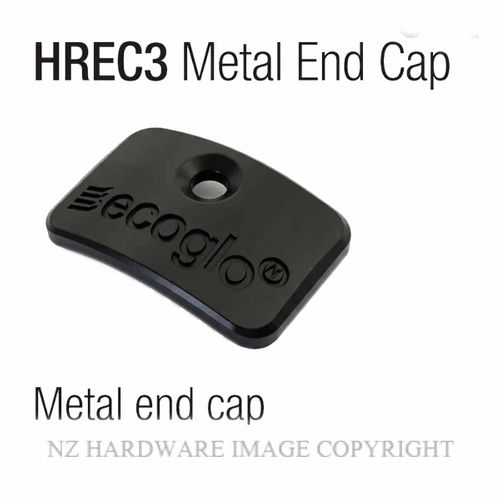

ECHREC3 BLK HREC3.BLK ECOGLO HREC3.BLK METAL END CAP FOR HANDRAIL STRIP BLACK
  • Unit:
    Each
  • Overall Length:
    -
  • Width:
    -
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each - - Screw Fix Non Returnable Item Non Returnable Item
$1.87 (exc GST)

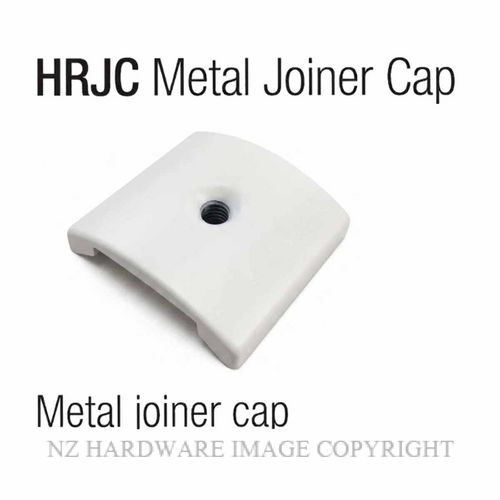

ECHRJC3 WHT HRJC3.WHT ECOGLO HRJC3.WHT METAL JOINER CAP FOR HANDRAIL STRIP WHITE
  • Unit:
    Each
  • Overall Length:
    -
  • Width:
    -
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each - - Screw Fix Non Returnable Item Non Returnable Item
$1.87 (exc GST)

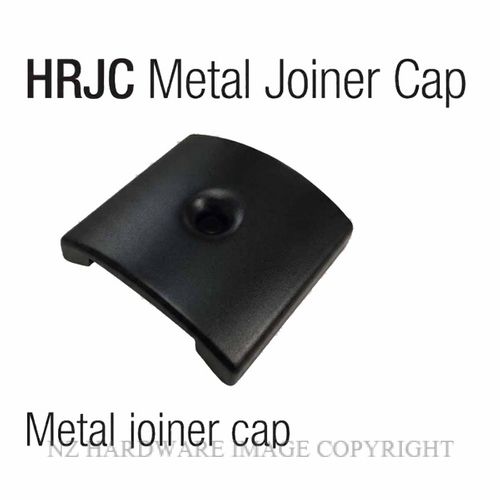

ECHRJC3 BLK HRJC3.BLK ECOGLO HRJC3.BLK METAL JOINER CAP FOR HANDRAIL STRIP BLACK
  • Unit:
    Each
  • Overall Length:
    -
  • Width:
    -
  • Mounting:
    Screw Fix
  • Returns Policy:
    Non Returnable Item
 Each - - Screw Fix Non Returnable Item Non Returnable Item
$1.87 (exc GST)
