BRIO SINGLE RUN 180KG

BRIO SINGLE RUN 180KG

BRIO SINGLE RUN 180KG TOP HUNG SLIDING DOOR TRACK

WIDELY USED IN LIGHTER COMMERCIAL AND INDUSTRIAL APPLICATIONS.
TO COVER ANY WIDTH OF OPENING, ANY NUMBER OF DOORS CAN BE USED.
TO ACCOMMODATE DIFFERENT BUILDING DESIGNS, DOORS CAN SLIDE TO ONE OR BOTH SIDES.
HINGED DOOR FOR EASY ACCESS MAY BE INCORPORATED INTO A SLIDING DOOR.
WHERE DOORS ARE FITTED EXTERNALLY, A CANOPY IS RECOMMENDED.
MAX PANEL HEIGHT3500mm
MAX PANEL WEIGHT180kg
MINIMUM PANEL THICKNESS35-48mm

THESE KITS ALLOW FOR THE PLATE FITTING HANGER.   ALL COMPONENTS CAN BE ORDERED SEPERATELY.

PLEASE NOTE WE HAVE ALLOWED FOR THE TOP TRACKS TO BE SCREW FIXED WE HAVE NOT ALLOWED FOR ANY TRACK BRACKETS.

BI SR180 950            THIS KITSET IS FOR DOORS UP TO 950MM             ITEMS INCLUDED IN KITSET

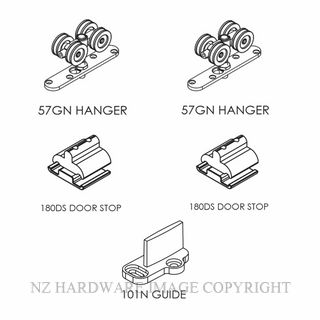

ITEMPART #QUANTITY
 BRIO 2000MM TOP TRACKBI180A-A201

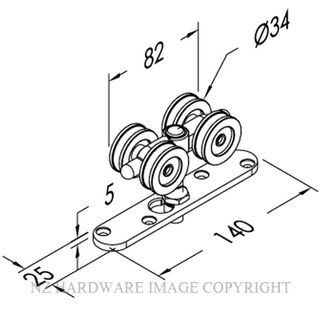

BRIO HANGERBI57GN2
BRIO TRACK STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 2000MM BOTTOM CHANNELBI94PPA-A201
BI SR180 1450            THIS KITSET IS FOR DOORS 950-1450MM           ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 3000MM TOP TRACKBI180A-A301
BRIO HANGERBI57GN2
BRIO DOOR STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 2000MM BOTTOM CHANNELBI94PPA-A201
BI SR180 1950            THIS KITSET IS FOR DOORS 1450-1950MM             ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 4000MM TOP TRACKBI180A-A401
BRIO HANGERBI57GN2
BRIO DOOR STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 2000MM BOTTOM CHANNELBI94PPA-201
BI SR180 2950            THIS KITSET IS FOR DOORS 1950-2950MM             ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 6000MM TOP TRACKBI180A-A601
BRIO HANGERBI57GN2
BRIO DOOR STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 3000MM BOTTOM CHANNELBI94PPA-301

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Door Type Height Door Thickness Returns Policy Privacy Policy Price Quantity
BI SR180 1450 BRIO SINGLE RUN 120KG TO 180KG - 950 TO 1450MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    3500mm
  • Door Thickness:
    35-48mm
  • Returns Policy:
    Non Returnable
 Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 3500mm 35-48mm Non Returnable Non Returnable
Retail: $926.49 (exc GST)
Special: $824.58 (exc GST)
BI SR180 1950 BRIO SINGLE RUN 120KG TO 180KG - 1450 TO 1950MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    3500mm
  • Door Thickness:
    35-48mm
  • Returns Policy:
    Non Returnable
 Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 3500mm 35-48mm Non Returnable Non Returnable
Retail: $1,002.23 (exc GST)
Special: $891.98 (exc GST)
BI SR180 2950 BRIO SINGLE RUN 120KG TO 180KG - 1950 TO 2950MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    3500mm
  • Door Thickness:
    35-48mm
  • Returns Policy:
    Non Returnable
 Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 3500mm 35-48mm Non Returnable Non Returnable
Retail: $1,195.77 (exc GST)
Special: $1,064.24 (exc GST)
BI SR180 950 BRIO SINGLE RUN 120KG TO 180KG - UP TO 950MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    3500mm
  • Door Thickness:
    35-48mm
  • Returns Policy:
    Non Returnable
 Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 3500mm 35-48mm Non Returnable Non Returnable
Retail: $843.18 (exc GST)
Special: $750.43 (exc GST)
