BRIO SINGLE RUN 350KG

BRIO SINGLE RUN 350KG TOP HUNG SLIDING DOOR TRACK

APPLICATION

Widely used in commercial and industrial applications.
To cover any width of opening, any number of panels can be used.
To accommodate different building designs, panels can slide to one or both sides.
Hinged panel for easy access may be incorporated into a sliding system.
Where panels are fitted externally, a canopy is recommended.
MAX PANEL HEIGHT4000mm
MAX PANEL WEIGHT350kg
MINIMUM PANEL THICKNESS35-48mm

THESE KITS ALLOW FOR THE PLATE FITTING HANGER.   ALL COMPONENTS CAN BE ORDERED SEPERATELY.

PLEASE NOTE WE HAVE ALLOWED FOR THE TOP TRACKS TO BE SCREW FIXED WE HAVE NOT ALLOWED FOR ANY TRACK BRACKETS.

BI SR350 950            THIS KITSET IS FOR DOORS UP TO 950MM             ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 2000MM TOP TRACKBI350-201

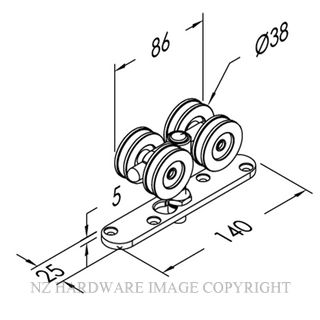

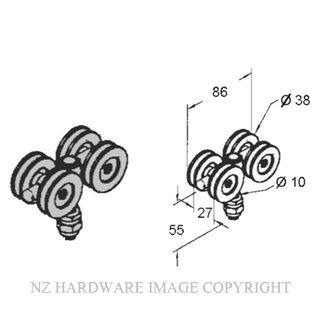

BRIO HANGERBI57HN2
BRIO TRACK STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 2000MM BOTTOM CHANNELBI94PPA-201
BI SR350 1450            THIS KITSET IS FOR DOORS 950-1450MM           ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 3000MM TOP TRACKBI350-301
BRIO HANGERBI57HN2
BRIO DOOR STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 2000MM BOTTOM CHANNELBI94PPA-201
BI SR350 1950            THIS KITSET IS FOR DOORS 1450-1950MM             ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 4000MM TOP TRACKBI350-401
BRIO HANGERBI57HN2
BRIO DOOR STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 2000MM BOTTOM CHANNELBI94PPA-201
BI SR350 2950            THIS KITSET IS FOR DOORS 1950-2950MM             ITEMS INCLUDED IN KITSET
ITEMPART #QUANTITY
 BRIO 6000MM TOP TRACKBI350-601
BRIO HANGERBI57HN2
BRIO DOOR STOPBI180DS2
BRIO DOOR GUIDEBI106E-941
BRIO 3000MM BOTTOM CHANNELBI94PPA-301
Code Supplier Part Number Image Product Name Unit Application Function Door Type Height Door Thickness Price Quantity
BI SR350 1450 BRIO SINGLE RUN 180KG TO 350KG - 950 TO 1450MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    4000mm
  • Door Thickness:
    35-48mm
Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 4000mm 35-48mm
$703.16 (exc GST)
BI SR350 1950 BRIO SINGLE RUN 180KG TO 350KG - 1450 TO 1950MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    4000mm
  • Door Thickness:
    35-48mm
Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 4000mm 35-48mm
$751.43 (exc GST)
BI SR350 2950 BRIO SINGLE RUN 180KG TO 350KG - 1950 TO 2950MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    4000mm
  • Door Thickness:
    35-48mm
Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 4000mm 35-48mm
$885.44 (exc GST)
BI SR350 950 BRIO SINGLE RUN 180KG TO 350KG - UP TO 950MM DOOR WIDTH KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior,Aluminium Exterior
  • Height:
    4000mm
  • Door Thickness:
    35-48mm
Kitset Commercial Use Building Exterior Timber Exterior,Aluminium Exterior 4000mm 35-48mm
$643.76 (exc GST)
