BRIO TIMBEROLL 100KG SLIDING DOOR TRACKS
| BRIO TIMBEROLL 100KG DOOR TRACKS |

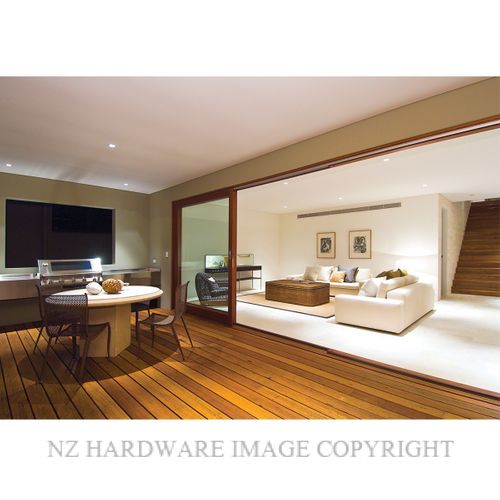

| For timber sliding doors interior and exterior applications. Designed for straight sliding partitions or fully glazed patio doors. Also suitable for flush panelled doors. The bottom roller design is suited to applications where the supporting structure or lintel is insufficient for the weight of the door or where headroom is limited. To cover the width of opening, any number of doors can be used on single or multiple lines or rail, doors can slide to one or both sides. Where fitted externally, a canopy is recommended to protect the top guide channel, brackets and top guide rollers. |
| MAX PANEL HEIGHT | 2400mm |
| MAX PANEL WEIGHT NYLON WHEEL | 100kg |
| MINIMUM PANEL THICKNESS | 40mm |
PLEASE CONTACT US FOR A SPECIFICATION
| PRODUCT DESCRIPTION | |
| ITEM | PART # |

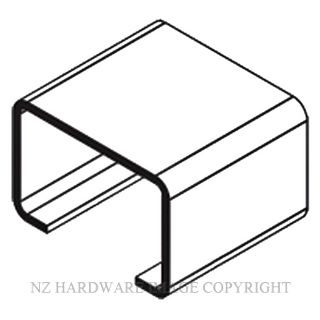

| TOP GUIDE CHANNEL (LIGHT DUTY) | BI94PPA |
| TOP GUIDE CHANNEL (HEAVY DUTY) | BI900A |
| TOP GUIDE T CHANNEL | BI96TA |

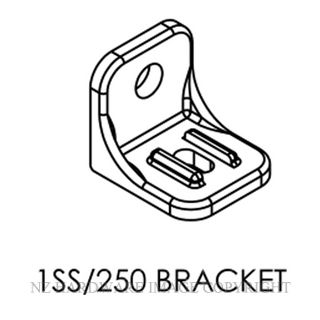

| TOP GUIDE BRACKETS SINGLE FACE FIX | BI1SS-250 |
| TOP GUIDE BRACKETS DOUBLE FACE FIX | BI5SS-250 |

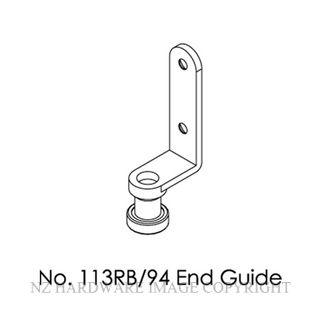

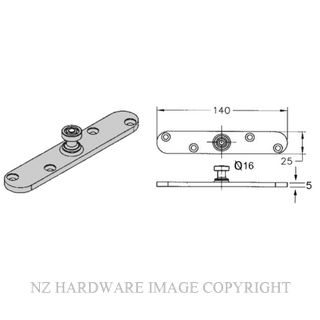

| TOP GUIDE (LIGHT DUTY) | BI113RB-94 |
| TOP GUIDE (LIGHT DUTY) | BI106RB-94 |
| TOP GUIDE (HEAVY DUTY) | BI61SS-900 |

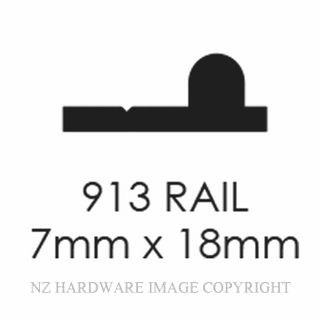

| BOTTOM CHANNEL (BRASS) | BI913B |
| BOTTOM ROLLER | BI913DBA |

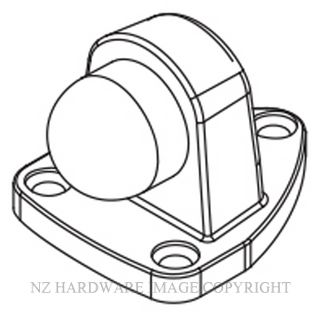

| DOOR STOP | BI110 |
| INTERLOCKER SEAL | BI924 |

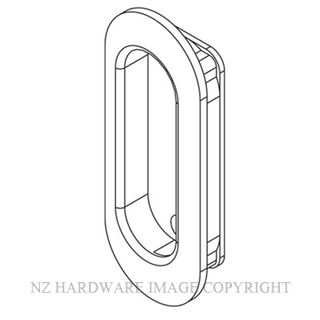

| FLUSH PULLS | BI401 |

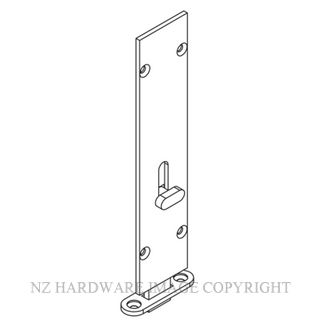

| FLUSH BOLTS | BI456 |
Downloadable Files
| Code | Supplier Part Number | Image | Name | Unit | Application | Function | Door Type | Height | Door Thickness | Returns Policy | Privacy Policy | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BI TR100 |
|
BRIO TIMBEROLL 100KG SLIDING DOOR TRACKS
|
Each | Commercial Use | Building Exterior,Hallway-Room Dividing | Timber Interior,Timber Exterior | 2400mm | 40mm | Non Returnable | Non Returnable |
$0.00 (exc GST)
|
