BRIO WEATHERFOLD 4S 50KG 4+4 DOOR TRACK KIT

APPLICATION

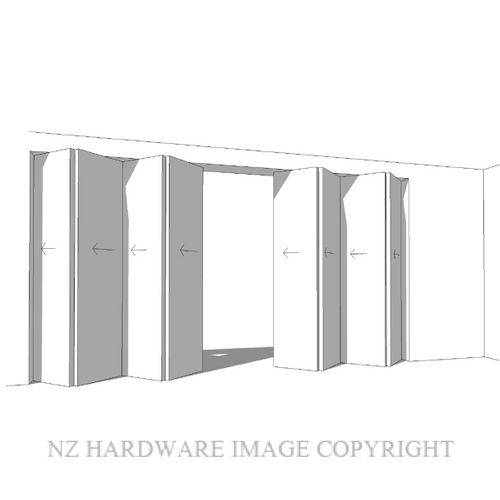

For residential and commercial folding doors where weatherproofing of the opening is required.
This section covers Weatherfold 4s 50 hardware suitable for non mortice timber applications.
When extra corrosion resistance is required Weatherfold 4s is available with precision stainless steel bearings.

WEATHERFOLD 50KG 4+4  4 DOORS EACH WAY

 PLEASE CONTACT US FOR A SPECIFICATION

WEATHERFOLD TRACK SPECIFICATIONS
MAX PANEL HEIGHT 3000mm
MAX PANEL WEIGHT 50kg
PANEL THICKNESS 35-68mm
MAXIMUM PANEL WIDTH 1000mm
FITS MAXIMUM OPENING WIDTH 8000mm

COMPONENTS INCLUDED IN KITSET ITEM NUMBER  QUANTITY
BRIO 180 TOP TRACK ANODISED 4MTR  BI180-A40  2
BRIO 94PPA POLYPROPYLENE CHANNEL 4MTR  BI94PPA-A40  2

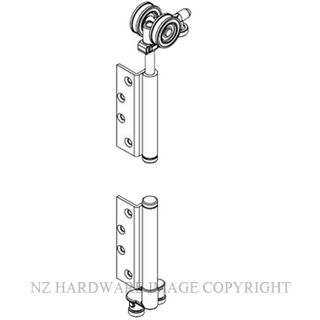

BRIO PIVOT SET NON MORTICED BIBWS1-100HSS
 2
 BRIO END HANGER SET SQUARE MORTICED BIBWS2-50SMSS  2
BRIO INTERMEDIATE HANGER SET NON MORTICED  BIBWS4-50SHSS   2
 OFFSET HINGE HANDLE SET NON MORTICED BIBW7-100HSS  4
BRIO BI456RSN RADIUS FLUSH BOLTS   BI456RSN  8
BRIO TRACK SEAL BLACK PER METER  BIPS13 BL 1000  8
ADDITIONAL SEALS THAT MAY BE REQUIRED BUT NOT INCLUDED IN KITSET
FRAME SEAL   BIAQ21 BL 1000
DOOR SEAL   BIAQ48 BL 1000
DOOR SEAL    BIAQ63 BL 1000



Code Supplier Part Number Image Product Name Unit Application Function Door Type Height Door Thickness Door Panel Width Price Quantity
BI WF4S 50 4+4 BRIO WEATHERFOLD 4S 50KG 4+4 DOOR TRACK KIT
  • Unit:
    Kitset
  • Application:
    Commercial Use,Residential Use
  • Function:
    Building Exterior
  • Door Type:
    Timber Exterior
  • Height:
    3000mm
  • Door Thickness:
    35-68mm
  • Door Panel Width:
    1000mm
Kitset Commercial Use,Residential Use Building Exterior Timber Exterior 3000mm 35-68mm 1000mm
$4,479.72 (exc GST)
