BRIO WEATHERFOLD 4S WINDOW 35KG TOP ROLLER EXTERIOR FOLDING
|
WEATHERFOLD WINDOW 35KG TRACK APPLICATION SQUARE MORTICED |

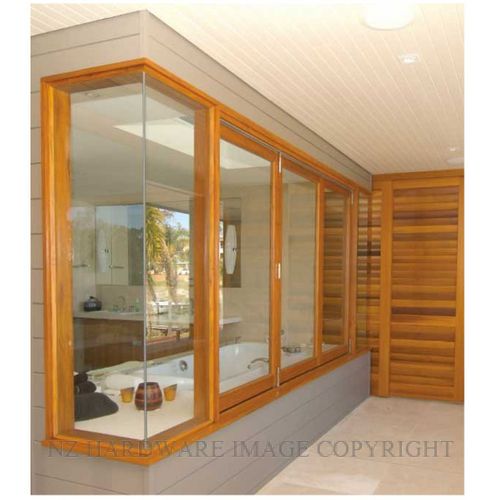

| Weatherfold Window 35 system has been designed for exterior timber outward folding windows in residential or light commercial applications. It has been specifically developed to suit smaller timber window stiles with up to six panels folding in one direction. A low profile concealed bottom guide channel provides hassle-free installation and greater visual appeal. Weatherfold WIndow hangers are cast 316 marine grade stainless steel with precision stainless steel bearings and nylon outer tyres. |
| MAX PANEL HEIGHT | 1800mm |
| MAX PANEL WEIGHT | 35kg |
| PANEL THICKNESS | 35mm |
| MAX PANEL WIDTH | 1000mm |
| MAX NUMBER OF PANELS | 6 Each Direction |
PLEASE CONTACT US FOR A SPECIFICATION
| COMPONENTS REQUIRED | |
| ITEM | PART # |
| TOP TRACK | BI120 |
| INTERMEDIATE HANGER SET | BIBWS4-35SHSS |
| END HANGER SET LEFT HAND NON MORTICED | BIBWS2L-35SHSS |
| END HANGER SET RIGHT HAND NON MORTICED | BIBWS2R-35SHSS |
| END HANGER SET LEFT HAND MORTICED | BIBWS2L-35SMSS |
| END HANGER SET RIGHT HAND MORTICED | BIBWS2R-35SMSS |
| PIVOT SET | BIBWS1F-35HSS |
| HINGE HANDLE SET | BIBW3-35HSS |
| HINGE SET | BIBW5-35HSS |
| OFFSET HINGE SET | BIBW6-35HSS |
| OFFSET HINGE HANDLE SET | BIBW7-35HSS |
| BOTTOM GUIDE TRACK | BI96W |
| ACCESSORIES | |
| ITEM | PART # |
| FLUSH PULL | BI401 |
| FLUSH BOLT 190MM | BI456R |
| FLUSH BOLT EXTENDED | BI456RL |
| FLUSH BOLT LOCKABLE 190MM | BI456RE |
| TRACK SEAL | BI13B |
| FRAME SEAL | BIAQ21 |
| DOOR SEAL | B1AQ63 |
Downloadable Files
Downloads
| Code | Supplier Part Number | Image | Name | Unit | Application | Function | Door Type | Height | Door Thickness | Door Panel Width | Price | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BI WF4S WIND 35 |
|
BRIO WEATHERFOLD 4S WINDOW 35KG TOP ROLLER EXTERIOR FOLDING
|
Each | Commercial Use,Residential Use | Building Exterior | Timber Exterior | 1800mm | 35mm | 1000mm |
$0.00 (exc GST)
|
