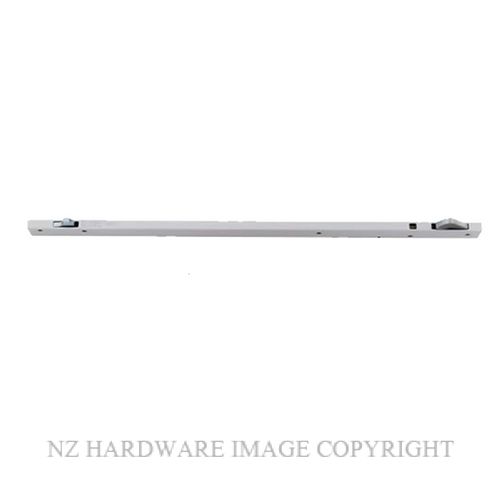

IVES COR32 - COR42 - COR52 DOOR CO-ORDINATORS

PRODUCT DESCRIPTION

The COR Series coordinators are designed for use on pairs of doors when one door needs to close before the other. The coordinator can be used in conjunction with LCN and Briton door closers. Ives coordinator's are designed for commercial projects and are suited to high traffic areas.
PRODUCT FEATURES
  • All COR bar coordinator units are equipped with an override feature which allows the active door to close under extreme pressure
  • All COR units are compatible with Ives auto flush bolts
  • The COR Series are available in varying sizes for variable door opening widths

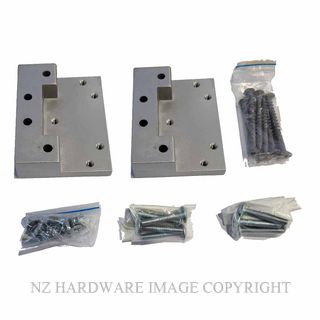

  • Optional mounting brackets available for other stop applied hardware such as exit devices

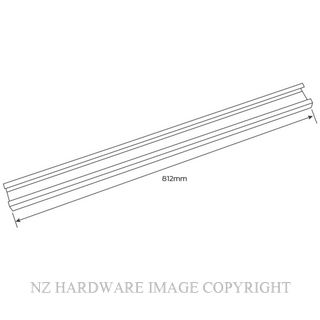

  • The COR coordinator does not cover the entire length of the stop, so a filler bar can be provided to maintain architecturally clean lines
  • COR coordinators are surface mounted and are suitable for installations where door seals may clash with other types of coordinators

 SPECIFICATIONS

ITEM NUMBERLENGTH OF CHANNELOPENING WIDTH
IVES COR32813mm864mm - 1320mm
IVES COR421067mm1320mm - 1828mm
IVES COR521320mm1575mm - 2337mm



MOUNTING DETAILS - REFER TO DIAGRAM

To determine the size COR you need:

  1. Start with the active door size (x).
  2. Next consider the overall frame opening between stops (F).
  3. Preferably, the coordinator would equal the active door width (x) + approximately 1/2 inactive door width (y). Keep in mind the coordinator must be 150mm longer than the active door width (x) and less than the overall frame opening between stop (F).

FOR UNEQUAL SIZE OPENING DOORS:

The coordinator length should equal the active door width plus approximately half the inactive door width. The coordinator must be 150mm longer than the active door width and shorter than the overall frame opening between stops.

If you require assistance with your selection, please contact us either by email or phone.

FOR RELATED PRODUCTS REFER BELOW

Downloadable Files

Code Supplier Part Number Image Name Unit Finish Overall Length Door Panel Width Returns Policy Privacy Policy Price Quantity
IVES COR32 GJH22065 IVES COR32 DOOR CO-ORDINATOR SILVER GREY
  • Unit:
    Each
  • Finish:
    Silver Grey
  • Overall Length:
    813mm
  • Door Panel Width:
    864mm-1320mm
  • Returns Policy:
    20 Percent Surcharge
Each Silver Grey 813mm 864mm-1320mm 20 Percent Surcharge 20 Percent Surcharge
$551.31 (exc GST)
IVES COR42 GJH28071 IVES COR42 DOOR CO-ORDINATOR SILVER GREY
  • Unit:
    Each
  • Finish:
    Silver Grey
  • Overall Length:
    1067mm
  • Door Panel Width:
    1320mm-1828mm
  • Returns Policy:
    20 Percent Surcharge
Each Silver Grey 1067mm 1320mm-1828mm 20 Percent Surcharge 20 Percent Surcharge
$569.24 (exc GST)
IVES COR52 GJH22048 IVES COR52 DOOR CO-ORDINATOR SILVER GREY
  • Unit:
    Each
  • Finish:
    Silver Grey
  • Overall Length:
    1320mm
  • Door Panel Width:
    1575mm-2337mm
  • Returns Policy:
    20 Percent Surcharge
Each Silver Grey 1320mm 1575mm-2337mm 20 Percent Surcharge 20 Percent Surcharge
$573.72 (exc GST)
